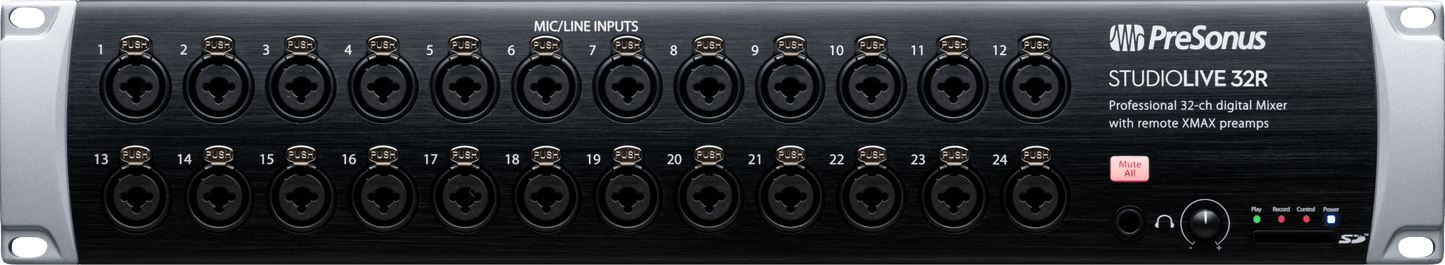

StudioLive® Series III 32R Digital Rack Mixer
StudioLive® Series III 32R Digital Rack Mixer
StudioLive® Series III 32R Digital Rack Mixer
Visión General
34-input, 40-channel rack mixer with stagebox and monitor mixer modes.
El mezclador digital StudioLive® 32R son cuatro herramientas de audio en dos compactos espacios de rack. Utilícelo como un mezclador digital independiente con el software de mezcla remota UC Surface. Combínelo con la mesa de mezclas StudioLive Series III para utilizarlo como caja de escenario o mezclador de monitorización integrado. Combínelo con los mezcladores de monitorización EarMix 16M para obtener el mejor sistema de monitorización personal Conéctela al ordenador de su estudio y dispondrá de una interfaz de audio USB bidireccional continua de 128 canales (64x64) con dinámica y ecualizadores vintage modelados en cada entrada y bus. Tanto si se utiliza de forma independiente como si forma parte de un sistema de audio completo, ningún otro mezclador digital de montaje en rack es tan flexible ni tan potente.
En el interior de la StudioLive 32R, el motor DSP PreSonus® FLEX de un solo núcleo impulsa 40 canales de mezcla, 22 buses de mezcla y 270 procesadores simultáneos, incluidos 4 efectos estéreo y modelos de plug-ins Fat Channel en cada canal de entrada y bus de mezcla. Se trata de un auténtico mezclador digital de 32 canales que cabe cómodamente en cualquier equipo de cualquier tamaño. Simplemente conéctelo a un router inalámbrico estándar y controle todos los parámetros de mezcla desde su iPad®, tableta Android™ u ordenador Windows® Touch usando UC Surface. UC Surface se ha diseñado para que mezclar en una pantalla táctil sea tan intuitivo como mezclar en faders.
Una interfaz de audio integrada de 128 canales (64x64) le permite grabar con preamplificadores analógicos recuperables digitalmente y un completo rack de procesadores de dinámica y ecualización vintage para cada canal y bus. Modelados a partir de diseños de estudio analógicos clásicos, estos plug-ins de compresor y EQ se cargan tanto de forma nativa en la StudioLive 32R como dentro de Studio One®, proporcionando la máxima flexibilidad de mezcla y grabación.
Overview
Características
- Powered by the new dual-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 36 input-channel digital rack mixer with 32 local digitally controlled XMAX mic/line inputs and FLEX FX returns
- 26 mix buses: 16 FlexMixes (Aux, Subgroup, Matrix), 4 dedicated FLEX FX buses, and Stereo Main bus
- 286 simultaneous processors: HPF, Gate/Expander Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- 24 DCAs to control groups of channels
- 128-channel (64x64) recording over USB
- Onboard stereo SD recorder with true Virtual Soundcheck mode
- AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers and more
- Monitor Mix and Stage Box mode for use with StudioLive Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Remote control every mix function from your computer, iPad®, or Android™ tablet with UC Surface (included)
- Put your musicians' monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
- Capture® 3.0 multitrack software included with Automated Virtual Soundcheck
- Advanced Studio One® integration (Studio One Artist Included)
- Ableton® Live Lite included
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Destacados
The perfect personal monitoring system.
When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 32R is the most powerful personal monitoring hub available. With 16 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 32R makes it easy to create simplified mixes for musicians on stage. No other personal monitoring system offers so much power and flexibility.
The digital stage box.
As a digital stage box, the StudioLive 32R provides 24 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 32R automatically mirror the mixes available on your console mixer, making routing fast and easy.
One-click recording
The StudioLive 32R is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

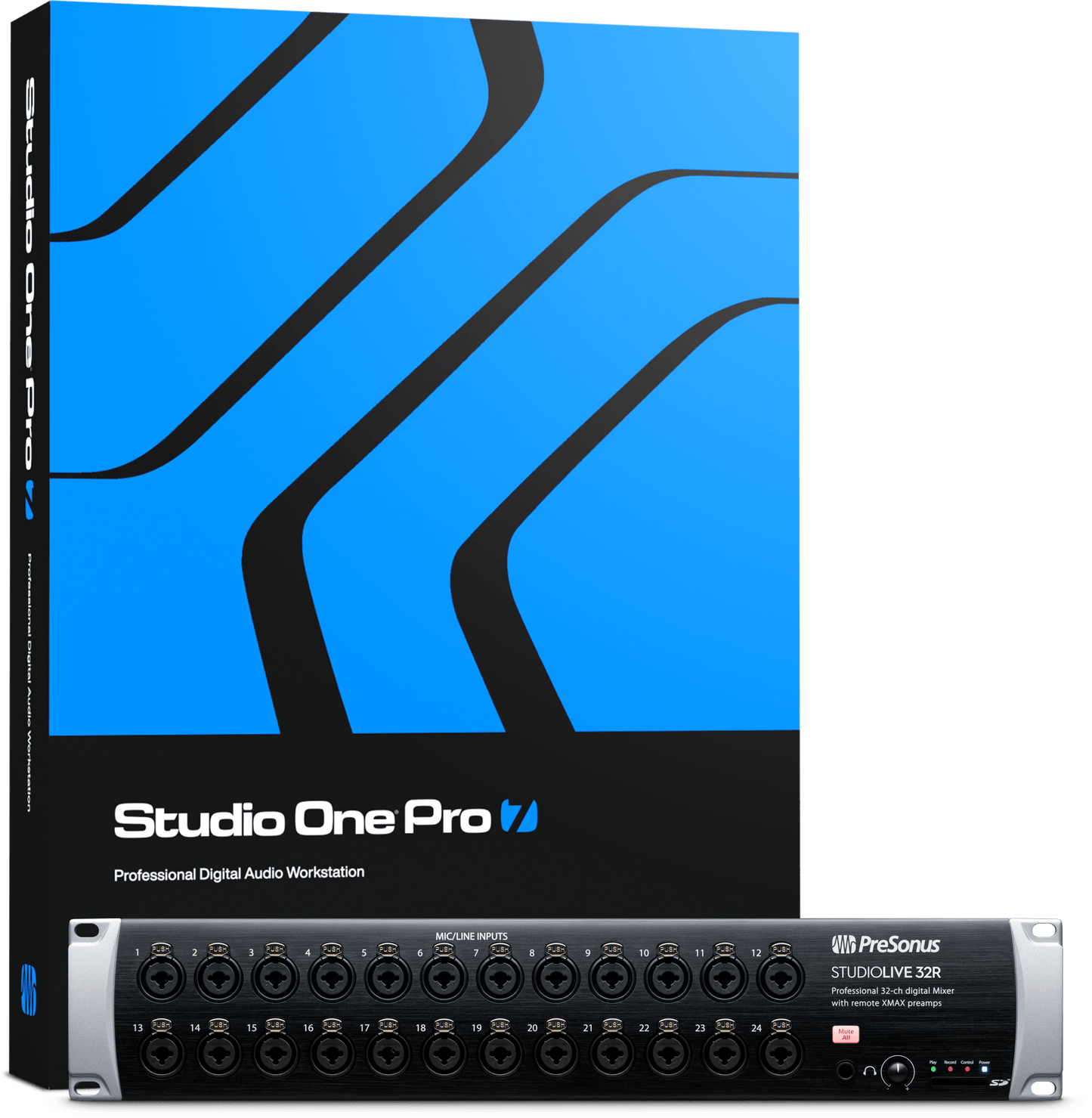

Studio One Pro 7 DAW Software License Included.
Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.
Especificaciones
Electrónica
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
100-120V
General
Color
Black
Product Name
StudioLive® Series III 32R Digital Rack Mixer, Black
Series
StudioLive®
Hardware
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Entradas
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Medidas
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Width
19" (483mm)
Varios
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Desempeño
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
