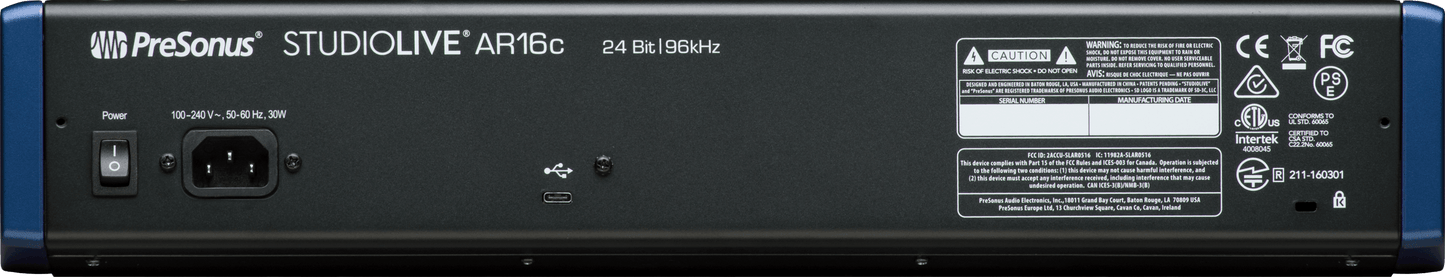

StudioLive AR16c Analog Mixer
StudioLive AR16c Analog Mixer
SKU: 2779200102
Precio habitual
$699.99
Precio habitual
$699.99
Precio de oferta
$699.99
Precio unitario
por
Our pristine analog 16 channel USB-C compatible audio interface, analog mixer, and stereo SD recorder.
No se pudo cargar la disponibilidad de retiro
StudioLive AR16c Analog Mixer
Precio habitual
$699.99
Precio habitual
$699.99
Precio de oferta
$699.99
Precio unitario
por
Visión General
No deje que el diseño de mezclador analógico clásico le engañe - la StudioLive® AR16c se construyó para grabar. Con un frontal analógico impecable, 12 previos de micro XMAX de alta ganancia y una interfaz de audio de 18x4 a 24 bits y 96 kHz, su diseño híbrido facilita la grabación de producciones de estudio y mezcla de actuaciones en directo desde una única consola intuitiva. Añada un ecualizador analógico musical de tres bandas, realce de micrófono/línea para sintetizadores vintage de bajo nivel y micrófonos de difusión, efectos digitales totalmente nuevos con ricas reverberaciones y exuberantes retardos, conectividad Bluetooth y una grabadora SD estéreo, y tendrá un centro neurálgico de mezcla y grabación que satisface las necesidades tanto de los músicos modernos como de los creadores de contenidos.
La interfaz de audio integrada de la StudioLive AR16c le permite grabar las 16 entradas, además de la mezcla principal, así como dos flujos de reproducción estéreo para mezclar pistas previamente grabadas, efectos de sonido, audio de loopback y mucho más. los aclamados previos de micro XMAX de PreSonus proporcionan toda la ganancia necesaria para capturar hasta los detalles más sutiles sin añadir ningún ruido adicional. El frontal del mezclador analógico hace que la conexión del equipo sea algo intuitivo. Con una conexión compatible USB-C, su StudioLive AR16c está lista para usarse con casi cualquier ordenador.
¿Necesita grabar sobre la marcha? la grabadora SD estéreo de la StudioLive AR16c le tiene cubierto. Inserte cualquier tarjeta SD/SDHC y ya estará listo para grabar su mezcla principal, perfecto para actuaciones en directo y ensayos.
Con opciones de grabación flexibles, un completo complemento de conexiones y un flujo de trabajo familiar al instante, la StudioLive AR16c facilita la grabación y la mezcla.
Overview
Características
- 18x4 24-bit/96 kHz, USB 2.0 (over USB-C™ connection) audio recording interface; record every channel plus the main mix
- 2x2 SD recorder (record main mix); supports SD and SDHC formats up to 32 GB
- 18-channel analog mixer with:
- 12 balanced microphone inputs with XMAX mic preamps plus two instrument inputs, 16 balanced line level inputs, and 2 insert points
- Stereo Super Channel (Ch. 17/18) with Bluetooth®0 wireless, RCA inputs, 1/8-inch stereo input, and switchable SD/USB stereo playback
- Stereo effects processor with 16 presets, dedicated send and return, and bypass footswitch jack
- Complete recording solution: Includes Capture™ live-recording software and Studio One® Pro+ for Mac® and Windows
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Destacados
Onboard effects.
The StudioLive AR16c mixer’s onboard effects processor lets you add high-quality reverb, delay, or chorus to any channel for a professional monitor mix. Like what you hear in your headphones? Record the main mix and capture the effects mix, too—with or without the dry channels—to blend with your multitrack recording. Experiment in post-production to your heart's content.
One-click recording
The StudioLive AR16c is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!
Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.
Especificaciones
Electrónica
Phantom Power
+48 VDC
Voltage
100-120V
General
Color
Blue
Product Name
StudioLive® AR16c Analog Mixer, Blue
Series
StudioLive®
Hardware
Digital Audio USB Recording Port
USB 2.0
Entradas
Instrument Input Connection Type
1/4” TS Female, Unbalanced, Hi-Z
Instrument Inputs Dynamic Range
> 108 dB (Mid Gain, Unweighted)
Instrument Inputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Instrument Inputs Gain Range
43 dB, ±1 dB (+12 to +55 dB)
Instrument Inputs Maximum Level
+9 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Line Inputs Gain Range
Mono: 40 dB, ±1 dB, Stereo: 0 dB or +10 dB
Line Inputs Impedance
10 kΩ (Balanced)
Line Inputs Maximum Level
+26 dBu ±1.0 dB (Minimum Gain, 1 kHz@0.5% THD + N)
Line Inputs Signal To Noise Ratio
85 dB (+4 dBu)
Line Inputs Total Harmonic Distortion
<0.01% (1 kHz, -1 dBFS, A-Weighted)
Microphone Input Connection Type
XLR Female, Class A XMAX
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz, +55 dB Gain)
Microphone Preamp Equivalent Input Noise
< 128 dBu (+55 dB gain, 150Ω Input, 20 Hz-22 kHz)
Microphone Preamp Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Microphone Preamp Gain Control Range
43 dB (+12 to +55 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
+9 dBu ±1.0 dB (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (+4 dBu)
Microphone Preamp Total Harmonic Distortion
<0.01% (Minimum Gain, A-Weighted)
Medidas
Media Storage Capacity
SD Card: 2 GB; SDHC Card: 32 GB
Product Depth
15.56" (397 mm)
Product Height
3.5” (90 mm)
Product Width
18.9" (48.01 cm)
Varios
Power Cable
IEC
Recording File Format
Stereo WAV
Supported Media Format
FAT16 Formatted SD™ Card, FAT32 Formatted SDHC™ Card
Supported Sample Rates
44.1, 48, 88.2, 96 kHz
Output
Headphone Outputs Dynamic Range
>103 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Headphone Outputs Maximum Output
150 mW /Channel at 60 Ω
Headphone Outputs Total Harmonic Distortion
<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
+18 dBu
Line Outputs Output Impedance
100 Ohms
Main And Line Outputs Frequency Response
20 Hz to 20 kHz, +0.5/-1.5 dB
Main And Line Outputs Total Harmonic Distortion
<0.01% (Bandwidth 20 Hz - 20 kHz, -1 dBFS, Unweighted)
XLR Outputs Maximum Output Level
+24 dBu, ±1.0 dB
XLR Outputs Output Impedance
100 Ohms
Desempeño
Crosstalk (Adjacent Channels)
-85 dBu (Reference = +4 dBu, 20 Hz to 20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
105 dB (A-Weighted, 48 kHz)
SD Recorder Bit Depth
Recording: 24 Bit, Playback: 16 or 24 Bit
SD Recorder Sampling Rate
44.1 kHz
