Our extremely low-latency 26x26, 24-bit / 192 kHz, Thunderbolt 3 recording audio interface.
No se pudo cargar la disponibilidad de retiro
Quantum 2626
Precio habitual
$699.99
Precio habitual
$699.99
Precio de oferta
$699.99
Precio unitario
por
Visión General
Con una latencia de ida y vuelta apenas medible de menos de 1 ms, no es de extrañar que la revista Sound on Sound haya llamado a las interfaces de audio de la serie Quantum Thunderbolt las "interfaces de audio más rápidas del planeta". La Quantum 2626 utiliza el bus Thunderbolt 3 y el controlador propietario de PreSonus® para lograr la latencia de ida y vuelta más baja de cualquier interfaz de audio (tan baja como <1 ms). Ahora puede grabar y monitorizar con una fidelidad de hasta 24 bits y 192 kHz a través de sus plug-ins favoritos, sin salir de la DAW.
El Quantum 2626 proporciona hasta 26 entradas y 26 salidas de audio, con 8 de los elogiados previos de micrófono analógicos XMAX Clase A de PreSonus. Los convertidores de alta calidad sobre cada entrada y salida analógicas ofrecen un rango dinámico de 115 dB para capturar complejas armonías musicales de forma suave y natural sin ninguna distorsión perceptible. El resultado es la excelente calidad de audio que buscan los profesionales. También dispone de E/S MIDI y E/S de word clock BNC que garantizan una sincronización perfecta con otros dispositivos de audio digital. La interfaz está bien protegida por un chasis de montaje en rack 1U, robusto, totalmente metálico y con knobs metálicos.

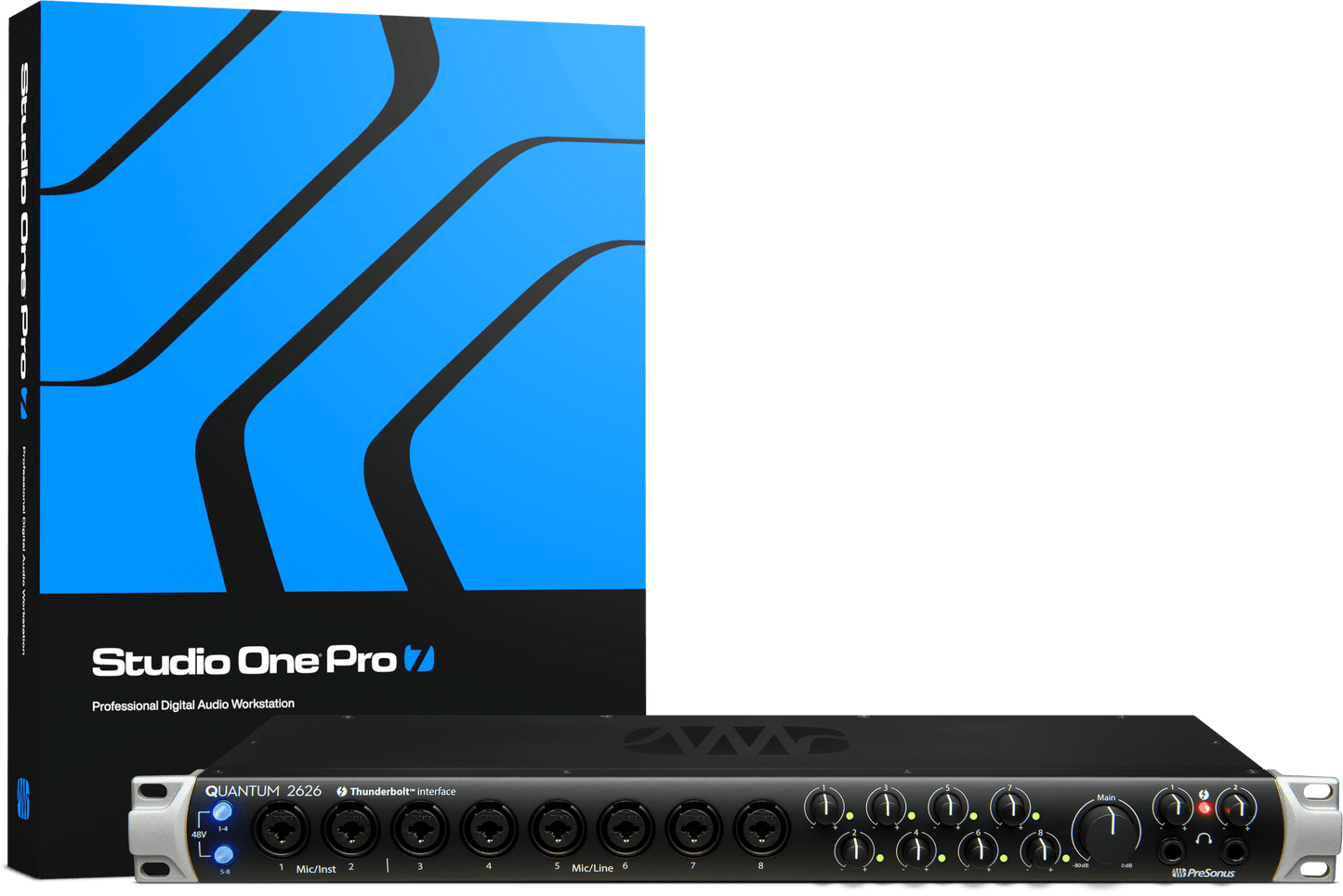

Con el DAW PreSonus Studio One™ Artist y la suite de software Studio Magic incluidos, la Quantum 2626 es una solución de grabación completa. La interfaz también es compatible con prácticamente cualquier software de grabación para macOS o Windows. El software de control gratuito PreSonus UC Surface proporciona acceso a la medición completa y a un analizador en tiempo real (RTA) integrado.
Overview
Características
- 26x26 Thunderbolt 3 ultra-low-latency (as low as <1 ms roundtrip)
- 24-bit/192 kHz operation with high-quality 115 dB A/D/A converters
- Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
- 2 mic/instrument inputs with preamp direct outputs with returns and 6 balanced mic/line inputs, all with PreSonus's famed XMAX preamps
- 2 balanced stereo main outputs with independent level control; 8 DC-coupled, balanced line outputs; and dual headphone outputs with independent level control
- ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
- Stereo S/PDIF coaxial input and output
- MIDI I/O and BNC word clock I/O with low-jitter clocking
- 12-months of Studio One Pro+ and Studio Magic Software Suite included
- 1U rack-mountable, with all-metal chassis and metal knobs
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Destacados
Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.
About XMAX preamps.
PreSonus®’ famed XMAX Class A preamps have no crossover distortion and deliver pure, clear, musical results. They run on high-voltage power rails to deliver more headroom, deeper lows, smoother highs and a richer overall sound. We only use discrete components for accuracy and transparency — not op-amps that can add noise, coloration and harshness.
All the connectivity you need.

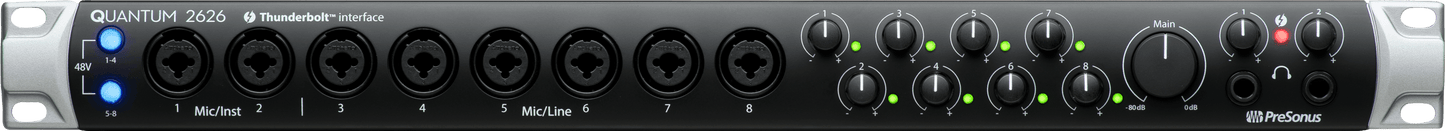

The Quantum 2626 provides two combo mic/instrument inputs (with direct outs and returns for patching outboard gear) and six balanced mic/line inputs. Another 18 inputs and outputs are available via ADAT/dual SMUX and S/PDIF. Eight ¼-inch TRS outputs are DC-coupled for sending control voltages, plus two Main outs, two headphone outs, and MIDI I/O.
Especificaciones
Electrónica
Connectivity
Thunderbolt
Headphone Jack
1/4” TRS Female, Stereo, Unbalanced
Phantom Power
+48 VDC
Signal Level Led
Clip: -0.5 dBFS Signal: -50 dBFS
Voltage
120V
General
Color
Black
Product Name
Quantum 2626, Black, 120V
Series
Quantum
Hardware
ADAT Optical IO
Toslink™ Connectors, ADAT/SMUX Formats
SPDIF IO
RCA 75Ω Coax
Word Clock IO
BNC Connector, 4.5 Vpp @ 75Ω Load
Entradas
Instrument Inputs Dynamic Range
> 106 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
Instrument Inputs Gain Range
60 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Inputs Dynamic Range
> 118 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+ 18 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
< 0.005% (1 kHz, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
> 110 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
< -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)
Microphone Preamp Gain Control Range
60 dB
Microphone Preamp Input Impedance
1.6 kΩ
Microphone Preamp Maximum Input Level
+10 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
< 0.005% (1 kHz, Minimum Gain)
Medidas
Product Depth
7" (17.8 cm)
Product Height
1.75" (44.45 mm)
Product Width
19" (483mm)
Varios
Power Cable
12 VDC, External Power Supply
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Output
Headphone Outputs Dynamic Range
> 110 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Impedance Working Range
16Ω to 300Ω
Headphone Outputs Maximum Output
175 mW/Channel (56Ω Load)
Headphone Outputs Total Harmonic Distortion
< 0.03% (1 kHz)
Line Outputs Connection Type
1/4" TRS Female
Main And Line Outputs Dynamic Range
> 118 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
Main And Line Outputs Maximum Level
+18 dBu (Balanced)
Main And Line Outputs Output Impedance
51Ω
Main And Line Outputs Total Harmonic Distortion
< 0.0035% (1 kHz, +4 dBu)
Main Outputs Connection Type
1/4" TRS Female
Desempeño
Crosstalk (Input to Input)
< -110 dB
Crosstalk (Output to Output)
< -115 dB
Digital Audio Bit Depth
24 Bits
Digital Audio Dynamic Range
115 dB (A-Weighted)
