Our high-definition 2x2, 24-bit / 192 kHz, USB-C compatible audio interface and DAW controller.
Couldn't load pickup availability
ioStation 24c
Regular price
$199.99
Regular price
$199.99
Sale price
$199.99
Unit price
per
Overview
2x2, 192 kHz, USB-C™ Compatible Audio Interface and DAW Controller

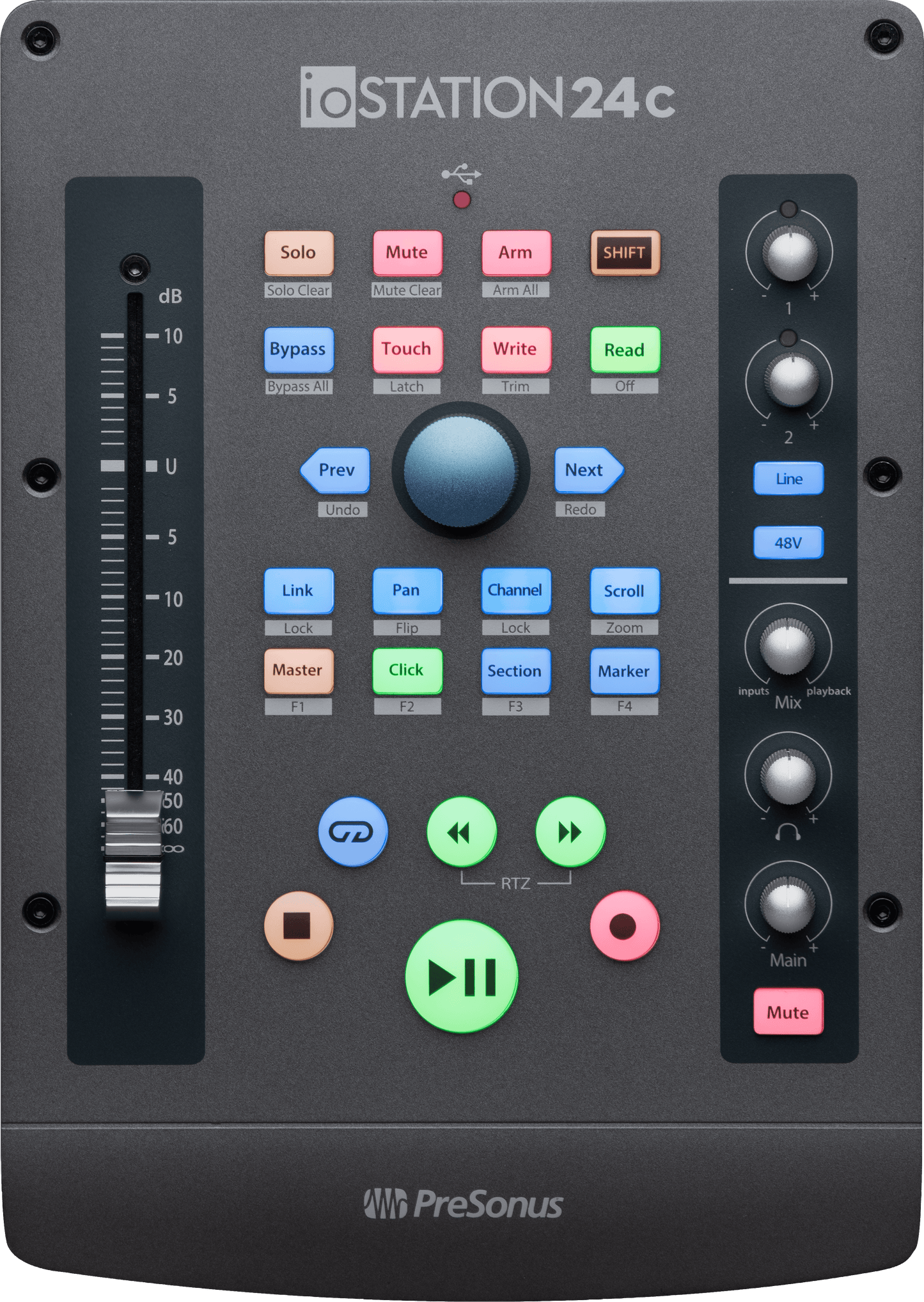

The ioStation 24c gives you the tools you need to record and mix with the ease of hands-on, tactile control - all in a single device that doesn't clutter your creative space. Record your audio through two pristine XMAX mic preamps and high-definition 24-bit, 192 kHz analog-to-digital converters. Navigate your recordings with easy-to-use transport controls. Edit your production and automate parameters in your favorite DAW with the powerful Session Navigator and mix it all with a 100 mm touch-sensitive motorized fader.
We've incorporated elements from the award-winning FaderPort®-series controllers into the ioStation 24c. Rather than forcing you to reinvent your mixing method, the ioStation 24c augments the way you currently mix. You will still use your faithful keyboard and mouse for things they do well, while the ioStation 24c handles what you really want to get your fingers on: your mix. This is DAW control the way it should be.
Streamlined workflow and support for the Mackie Control and HUI protocols make it fast and easy to control Pro Tools, Logic Pro X, Cubase, Ableton Live, and more. No driver installation is necessary; just plug in your ioStation 24c and take command of your mix. Deep integration with Studio One Pro will let you mix at lightning speed.
Whether you're just getting into audio production or streamlining your recording rig, the ioStation 24c gives you ultra-high-def sound with professional mixing tools in a compact, space-saving design.
Overview
Features
- Two products in one: audio interface and DAW controller
- 24-bit/192 kHz audio interface with 2 mic/instrument/line inputs with XMAX mic preamps, 2 balanced ¼-inch TRS main outputs, headphone output with independent level control
- Complete recording-transport controls: Play, Stop, Fast Forward, Rewind, Record, Loop, Drop Marker, Next/Prev Marker, Next/Prev Event
- General session controls: Undo/Redo, Arm All, Solo/Mute Clear, Click On/Off
- Session Navigator provides quick control over Track Scrolling, Timeline Scrolling, and much more
- Channel Controls: Level, Pan, Solo, Mute, Rec Arm
- Automation Controls: Touch, Latch, Trim, Write, Read, Off
- macOS®- / Windows®-compatible with native Studio One Pro support and HUI and Mackie Control Universal emulation
- Footswitch input for hands-free start/stop (footswitch not included)
- 6-months of Studio One Pro+ included
- Studio Magic software suite included
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Studio One Pro 7 DAW Software Access Included.
Your hardware registration includes a 6-month stackable membership to Studio One Pro+ featuring unlimited access to the latest version of Studio One Pro and all the extras.
Ableton Live integration.
While compatible with most third-party software, FaderPort offers deeper integration with Ableton Live (version 10.1.5 and later). Navigate clips and scenes, change track volume and panning, and switch between Session and Arranger views — the FaderPort will help you work faster than ever.
Superior Sound
Two of PreSonus®’ acclaimed XMAX Class A analog microphone preamps deliver incredibly high headroom and a rich overall sound. High-quality converters provide 115 dB of dynamic range to capture complex musical harmonics smoothly and naturally. The result is clear, consistent audio that makes mixing easier and creating a polished sound faster.
Specs
Accessories
Footswitch
Momentary or Latching (Not Included)

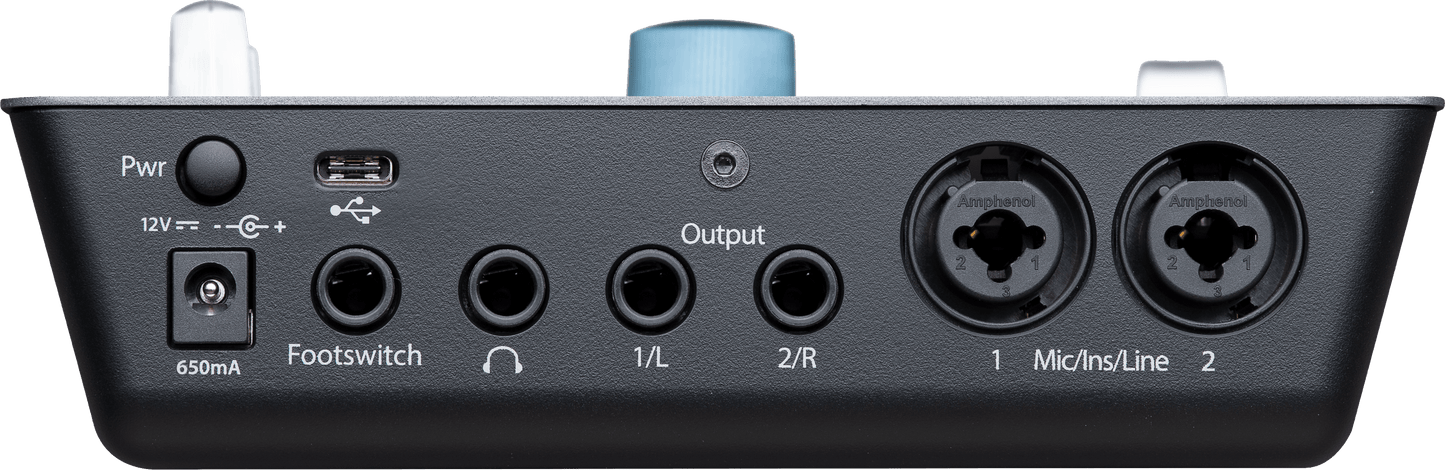

Electronics
Connectivity
USB-C® Compatible USB 2.0 Connection
Headphone Jack
1/4” TRS Female, Stereo, Unbalanced
Inputs
Two - Combo Mic/Instrument/Line Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced (Inst) or TRS Female Balance (Line))
Phantom Power
+48 VDC
General
Color
Black
Product Name
iOStation 24C, Black
Series
ioStation
Inputs
Instrument Input Connection Type
1/4” TS Female (Combo), Unbalanced
Instrument Inputs Dynamic Range
> 110 dB (A-Weighted, Minimum Gain)
Instrument Inputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
Instrument Inputs Gain Range
80 dB
Instrument Inputs Maximum Level
+15 dBu (Unbalanced, Minimum Gain)
Line Input Connection Type
1/4” TRS Female (Combo), Balanced
Line Inputs Dynamic Range
> 114 dB (A-Weighted, Minimum Gain)
Line Inputs Frequency Response
20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
Line Inputs Gain Range
80 dB
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+ 22 dBu (Balanced, Minimum Gain)
Line Inputs Total Harmonic Distortion
< 0.007% (1 kHz, -1 dBFS, Minimum Gain)
Microphone Input Connection Type
XLR Female (Combo), Balanced
Microphone Preamp Dynamic Range
> 107 dB (A-Weighted, Minimum Gain)
Microphone Preamp Equivalent Input Noise
< -128 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
Microphone Preamp Frequency Response
20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)
Microphone Preamp Gain Control Range
80 dB
Microphone Preamp Input Impedance
1.6 kΩ
Microphone Preamp Maximum Input Level
+16 dBu (Balanced, Minimum Gain)
Microphone Preamp Total Harmonic Distortion
< 0.007% (1 kHz, Minimum Gain)
Measurements
Product Depth
6.8” (17.2 cm)
Product Height
2.4" (6 cm)
Product Width
9.6" (14.5 cm)
Miscellaneous
Commodity Code
8517620000
Power Cable
12 VDC, 1.2A, External Power Supply
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 kHz
Output
Headphone Outputs Dynamic Range
> 107 dB (A-Weighted)
Headphone Outputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, 56Ω Load, 48 kHz)
Headphone Outputs Impedance Working Range
32Ω to 300Ω
Headphone Outputs Maximum Output
150 mW/Channel (56Ω Load)
Headphone Outputs Total Harmonic Distortion
< 0.02% (1 kHz, -1 dBFS, No Load)
Main And Line Outputs Dynamic Range
> 109 dB (A-Weighted)
Main And Line Outputs Frequency Response
20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
Main And Line Outputs Maximum Level
+18 dBu (Balanced)
Main And Line Outputs Total Harmonic Distortion
< 0.005% (1 kHz, +4 dBu)
Performance
Digital Audio Bit Depth
24 Bit
Digital Audio Dynamic Range
ADC Dynamic Range (A-Weighted): 115 dB, DAC Dynamic Range (A-Weighted): 115 dB
