Overview

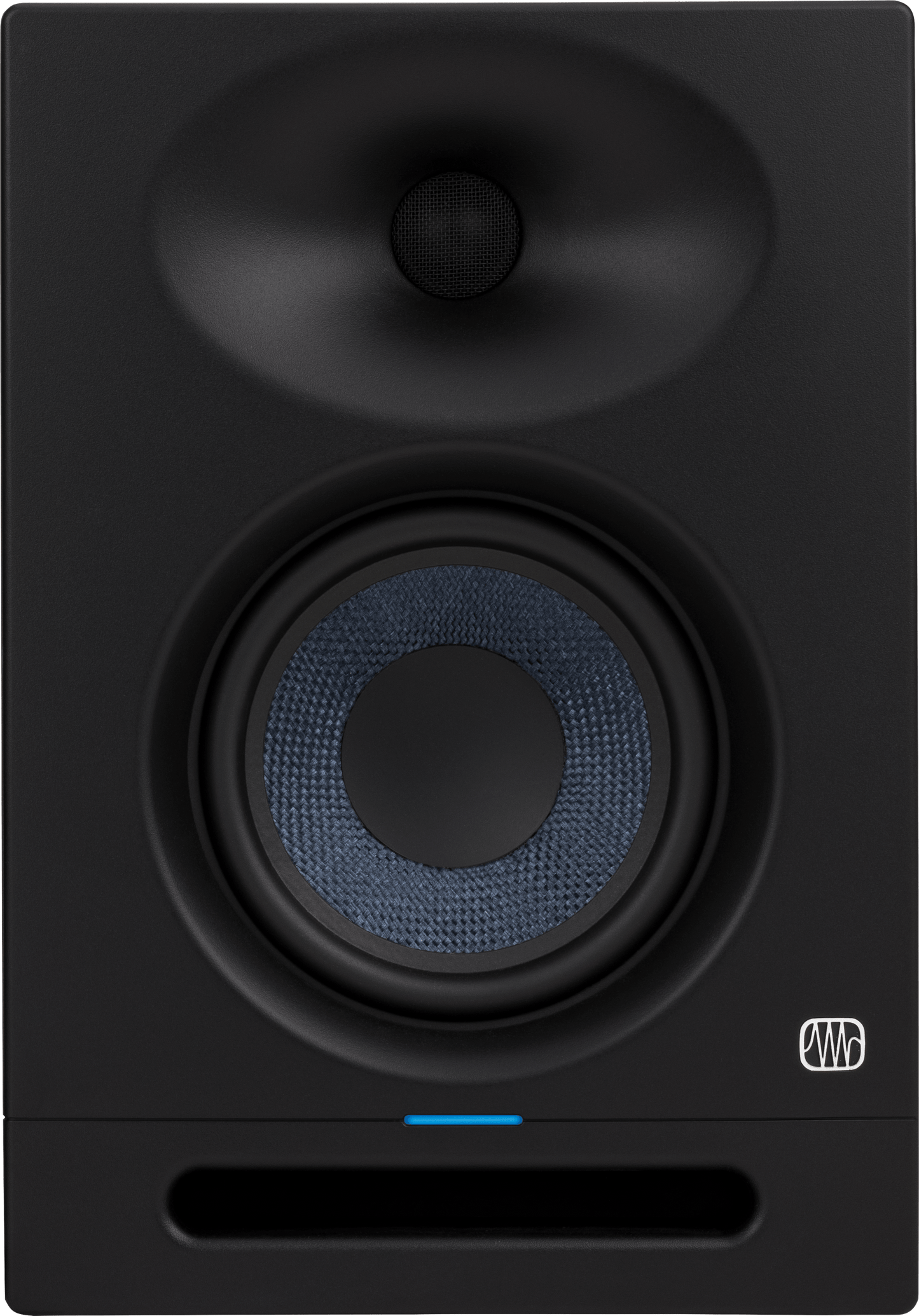

5.25-inch 2-Way Active Studio Monitors with EBM Waveguide
Eris Studio-series monitors are designed for superior performance with sonic clarity and accuracy, so you hear every detail in your mix. Building on decades of technological expertise, the third-generation Eris Studio 5 delivers rich low-end and controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide provides superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, while the silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.
The woven-composite low-frequency driver offers Eris' signature tight, clear bass with plenty of punch. Its 80W of biamped power makes the Eris Studio 5 more efficient than previous designs. The ported enclosure maximizes bass response and allows the Eris Studio 5 to reach down to an astonishing 48 Hz—without a subwoofer!
Modern recording studios can be anywhere from a spare bedroom to a multi-million dollar facility; that's why Eris Studio 5 is equipped with controls that ensure the flattest response in your mix environment. Acoustic tuning controls let you configure your studio monitors perfectly for your room—you get Low-cut, Mid, and High controls, plus 3-way acoustic space tuning that helps you easily compensate for the sonic effects of speaker placement against a wall or in a corner.
Designed for superior performance in both home studios and small professional mix rooms, the Eris Studio 5 combines flexible connectivity with sonic accuracy that puts it in a class all its own.
Learn more about selecting the right studio monitor for your application.
Overview
Features
- 5.25-inch woven composite low-frequency driver
- 1-inch, ultra-low mass, silk-dome, high frequency driver
- Crossover Frequency 3.5 kHz
- 120˚ x 60˚ EBM waveguide provides a sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 80W, Class AB dual amplification
- 48 Hz to 20 kHz frequency response
- 102 dB Peak SPL (@ 1 meter)
- Acoustic Tuning Controls:
- Acoustic Space (Flat, -2 dB, -4 dB)
- High Frequency (±6 dB, center 10 kHz, continuously variable)
- Mid Frequency (±6 dB, center 1 kHz, continuously variable)
- Low Cut (Flat, 80 Hz, 100 Hz @ -12 dB / octave)

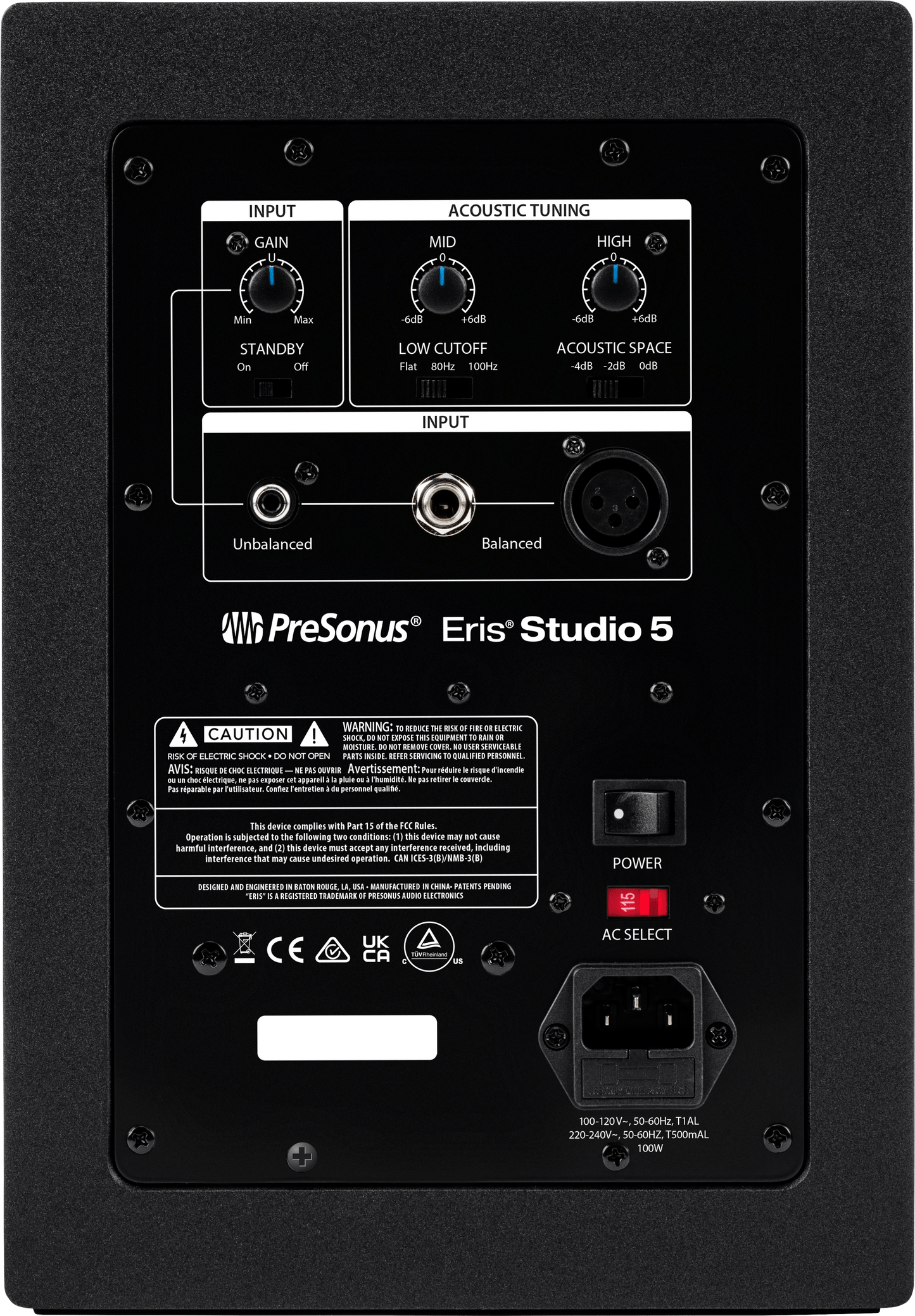

- Inputs:
- XLR and 1/4-inch TRS balanced rear-panel inputs
- RCA unbalanced rear-panel inputs
- Protection:
- RF interference
- Output-current limiting
- Over-temperature
- Turn-on/off transient
- Subsonic filter
- Power Saver mode (engages after 40 minutes)
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 5 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 5, Black, 120V
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
35 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
45 Watts
LF Transducers
5.25" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
8.78" (22.3 cm)
Product Height
11.5" (29.2 cm)
Product Height/Length
11.5" (29.2 cm)
Product Width
8" (20.32 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
102 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
3.5 kHz
