Overview

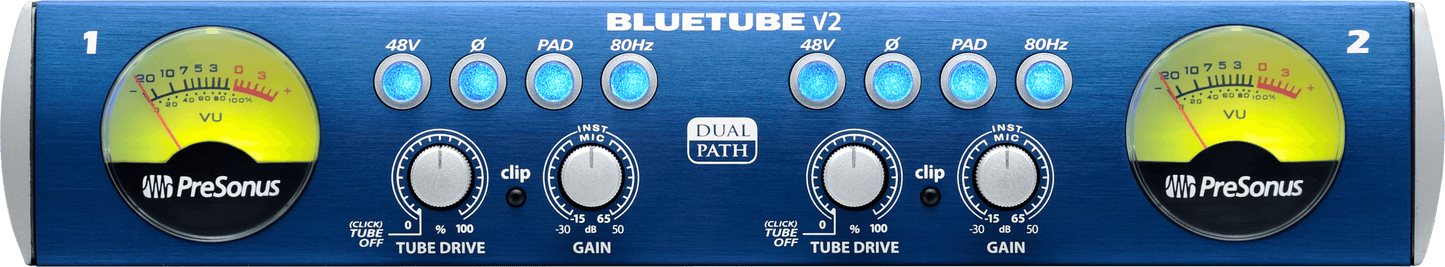

Equipped with instrument and mic inputs and built for serious gigging, the PreSonus® BlueTube DP V2 dual-path mic/instrument preamplifier is a great choice for guitarists, bassists, singer/songwriters and more. Compact, affordable and capable of a stunningly wide range of tones, the BlueTube DP V2 offers two independent channels with combo mic/instrument inputs and unbalanced ¼-inch and balanced XLR line outputs. You can use it as a preamp and as a direct box (DI) for guitars and basses. Singer-songwriters can run the vocal through one channel and a guitar through the other, feeding both to the PA - no guitar amp needed.
Each channel features one of PreSonus' famed XMAX Class A solid-state preamps, followed in the signal path by a 12AX7 vacuum-tube stage that's hand-selected and carefully tested for top audio performance. When the Tube Drive control is clicked off, you're using the solid-state preamp for quiet, clean transparent amplification; when engaged, your signals flow through the tube preamp, and you can achieve anything from gentle warmth to edgy distortion.
We didn't forget the extras: an 80 Hz highpass filter, phantom power, a -20 dB pad to control hot input signals, polarity reverse and a backlit VU meter. Housed in a rugged case small enough to carry in a gig bag or screw-mount in half a standard rack tray, the BlueTube DP V2 is a great-sounding tool you'll use on a variety of sources.
Overview
Features
- 2 Balanced combo mic/unbalanced instrument inputs
- 2 High-headroom Class A XMAX mic preamplifiers with 80 dB gain range and 48V phantom power and 12AX7 vacuum tube gain stage with Tube Drive tube-saturation control
- 80 Hz high-pass filter
- -20 dB pad to reduce hot input levels
- Polarity-reverse switch
- Illuminated analog VU input-level meter

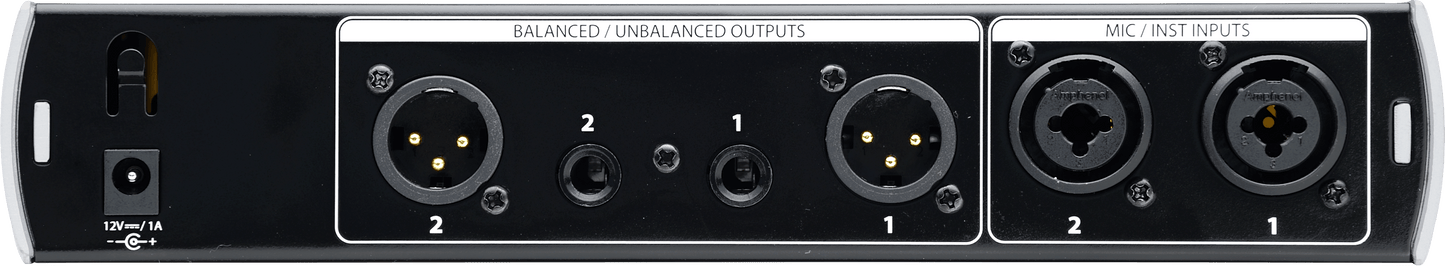

- 2 balanced XLR and 2 unbalanced ¼-inch main (L/R) line outputs
- Compact 1/2U chassis
- External 12 VDC, 1A power supply
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Electronics
Channels
Two
Voltage
120V
General
Color
Blue
Product Name
BlueTube DP v2, Blue, 120V
Series
Microphone Preamps
Inputs
Instrument Input Connection Type
1/4” TS Female, Unbalanced, Hi-Z
Microphone Preamp Input Impedance
1.3 kΩ
Microphone Preamp Total Harmonic Distortion
Tube Stage: 0.01% to 30% (Unweighted), Solid-State: <0.005% (Unweighted)
Measurements
Product Depth
5.5" (139.7 mm)
Product Height
1.75" (44.45 mm)
Product Width
9.5" (241mm)
Miscellaneous
Power Cable
12 VDC, 1A, External Power Supply
Output
Main And Line Outputs Output Impedance
51Ω
