Overview

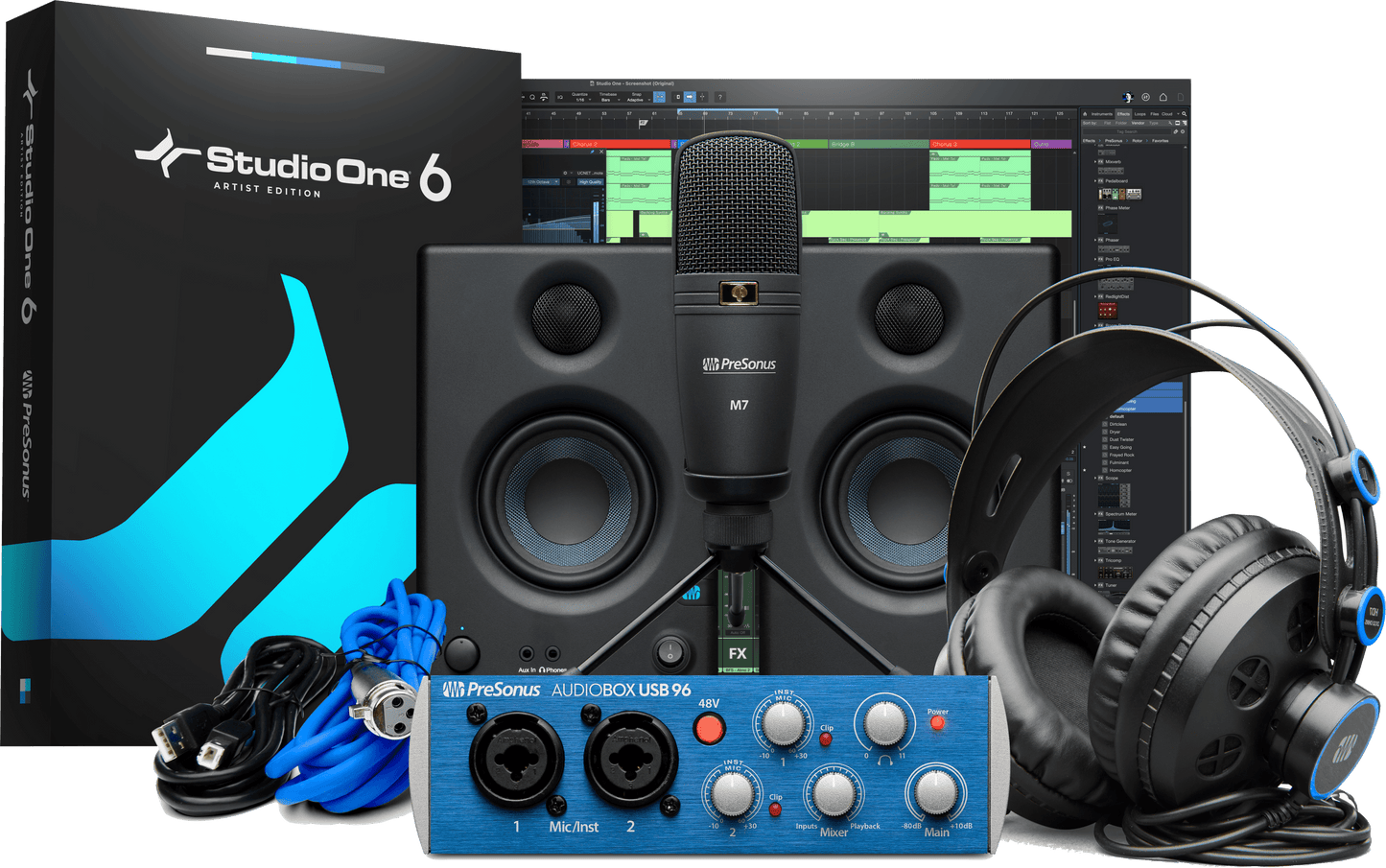

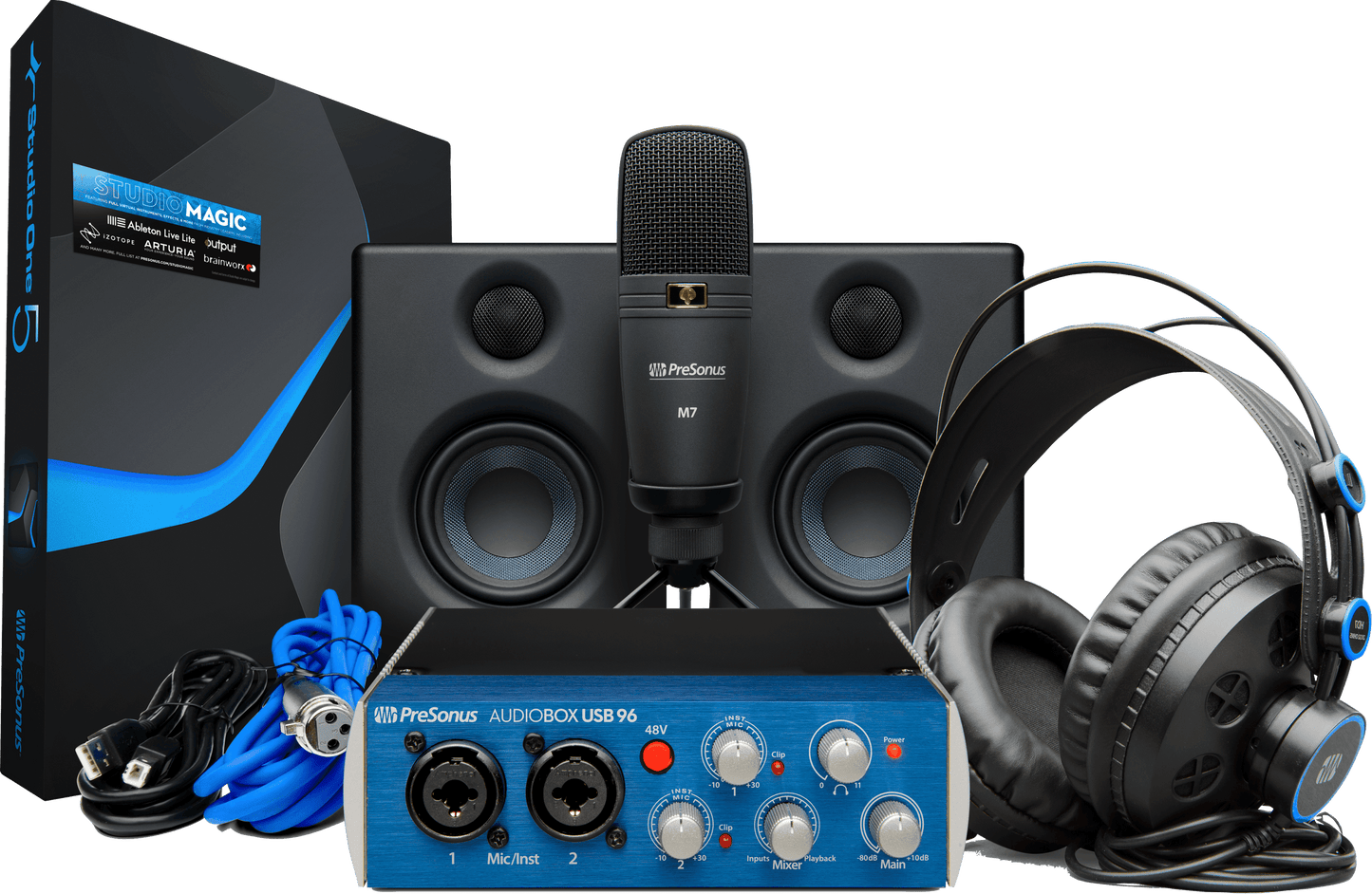

Complete Hardware/Software Recording Kit
Produce and record like a pro with a single-purchase, all-PreSonus® bundle that includes an audio/MIDI interface, software, monitor speakers, headphones, a microphone, cables and a desktop mic stand.
The AudioBox® USB 96 interface offers the right features for basic recording, including two combo mic/instrument inputs and zero-latency monitoring. Bus-powered, built to travel, compatible with most recording software for macOS and Windows and equipped with high-performance mic preamps and 24-bit, 96 kHz converters, the AudioBox USB 96 makes it easy to start recording right away.
Studio One™ Artist for macOS and Windows lets you work quickly and stay focused on your inspiration. It offers unlimited tracks and plug-ins and features not normally found in entry-level DAWs, yet it's easy to learn and use.
Ideal for bedroom studios, Eris® E3.5 active media reference monitors deliver studio-quality sound, with a smooth and accurate frequency response. Yet they're compact enough to fit almost anywhere.
Our high-definition HD7 headphones employ a patented, semi-open sound chamber to deliver exceptionally deep lows, with a balanced, yet powerful bass punch. Accurate midrange and extended treble response let you pick out fine details of a mix or track.
Get your mic collection off to a good start with the M7 large-diaphragm condenser microphone. Large-diaphragm condenser mics like the M7 tend to "warm up" sounds, making them the go-to mic for vocals and a wide range of instruments.
Overview
Features
- Complete all-PreSonus® solution: Everything you need to produce music, podcasts, sound effects and more.
- AudioBox USB® 96 2-in/2-out bus-powered USB 2.0 audio/MIDI interface with 24-bit resolution and up to 96 kHz sampling rate
- 2 mic/instrument inputs with low-noise, high-headroom, Class A mic preamplifiers and +48V phantom power
- 1x1 MIDI In and Out
- Compatible with Apple Intel- and Apple Silicon-based Macs, as well as Windows computers and recording software
- Studio One™ Artist recording and production software for macOS and Windows with unlimited tracks and plug-ins
- Studio Magic Software Suite (over $1,000 value!)
- Eris® E3.5 media reference monitors (stereo pair) with 3.5-inch woofers, 1-inch tweeters, and 25W/side power amplifier
- HD7 high-definition headphones with patented, semi-open sound chamber for exceptionally deep low frequency response
- M7 large-diaphragm condenser microphone with desktop mic stand and carry bag
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Accessories
Included Accessories
1/8" to 1/4" (3.5 to 6.3 mm) Screw-On Gold-Plated Stereo Mini-Plug
Electronics
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Input Impedance
10 kΩ
Inputs
Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
Line Out
Two - 1/4" Balanced (Left and Right)
Phantom Power
+48 VDC (±2 VDC)
Phantom Power Requierments
+12 to +52 VDC, 3 mA
General
Color
Black and Blue
Product Name
AudioBox® USB® 96 Studio Ultimate Bundle, Black and Blue
Series
AudioBox®
Hardware
Audio Controls
Volume Range: A-Type Taper MF Control: Variable (-6 to +6 dB, Center 100 Hz) HF Control: Variable (-6 to +6 dB, Center 10 Hz)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
50 mm, Neodymium
HF Transducers
1” Silk Dome Tweeter
LF Transducers
3.5"
Microphone Element
Electret
Microphone Types
Large-Diaphragm Condenser Microphone
Monitor Inputs
1 x Stereo 1/8" (3.5 mm), 2 x Balanced 1/4" (6.35 mm) TRS, 2 x Unbalanced RCA
Inputs
Instrument Inputs Gain Range
(± 1 dB) +5 dB to 50 dB
Microphone Preamp Common Mode Rejection Ratio
>45 dB, 1 kHz, 55 dB Gain
Microphone Preamp Frequency Response
(±3.0 dB) 20 Hz to 20 kHz
Microphone Preamp Gain Control Range
0 dB to 35 dB, ± 1 dB
Microphone Preamp Input Impedance
(Balanced) 1200Ω
Microphone Preamp Maximum Input Level
-3 dBu, Unity Gain, 1 kHz @ 0.5% THD+N
Microphone Preamp Signal To Noise Ratio
(Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Microphone Preamp Total Harmonic Distortion
THD+N (Unweighted, 1 kHz at +4 dBu Output, Unity Gain) < 0.008%
Measurements
Headphone Weight Without Cable
7.8 oz (222g)
Product Depth
1.75" (44.45 mm)
Product Height
5.5" (139.7 mm)
Product Width
5.5" (139.7 mm)
Miscellaneous
Power Cable
USB 2.0 Bus-Powered
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
External Mains Fuse
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Output
Headphone Outputs Frequency Response
(±1.0 dB) 20 Hz to 30 kHz
Headphone Outputs Maximum Output
60 mW/Channel at 60Ω Load
Main And Line Outputs Output Impedance
51Ω
Performance
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
Dynamic Range
11 dB
Headphone Frequency Response
10 Hz to 30 kHz
Headphone Maximum Power
300 mW
Headphone Rated Impedance
32Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Maximum SPL
136 dB SPL
Microphone Frequency Response
40 Hz - 18 kHz
Microphone Sensitivity
-39 dBV/pa (12.2 mV/pa)
Peak SPL
100 dB (at 1 meter)
Polar Patern
Cardioid
Speakers
Crossover Frequency
2.8 kHz
