AudioBox USB® 96 Complete Bundle
AudioBox USB® 96 Complete Bundle
Overview
EVERYTHING YOU NEED, NOTHING YOU DON'T.

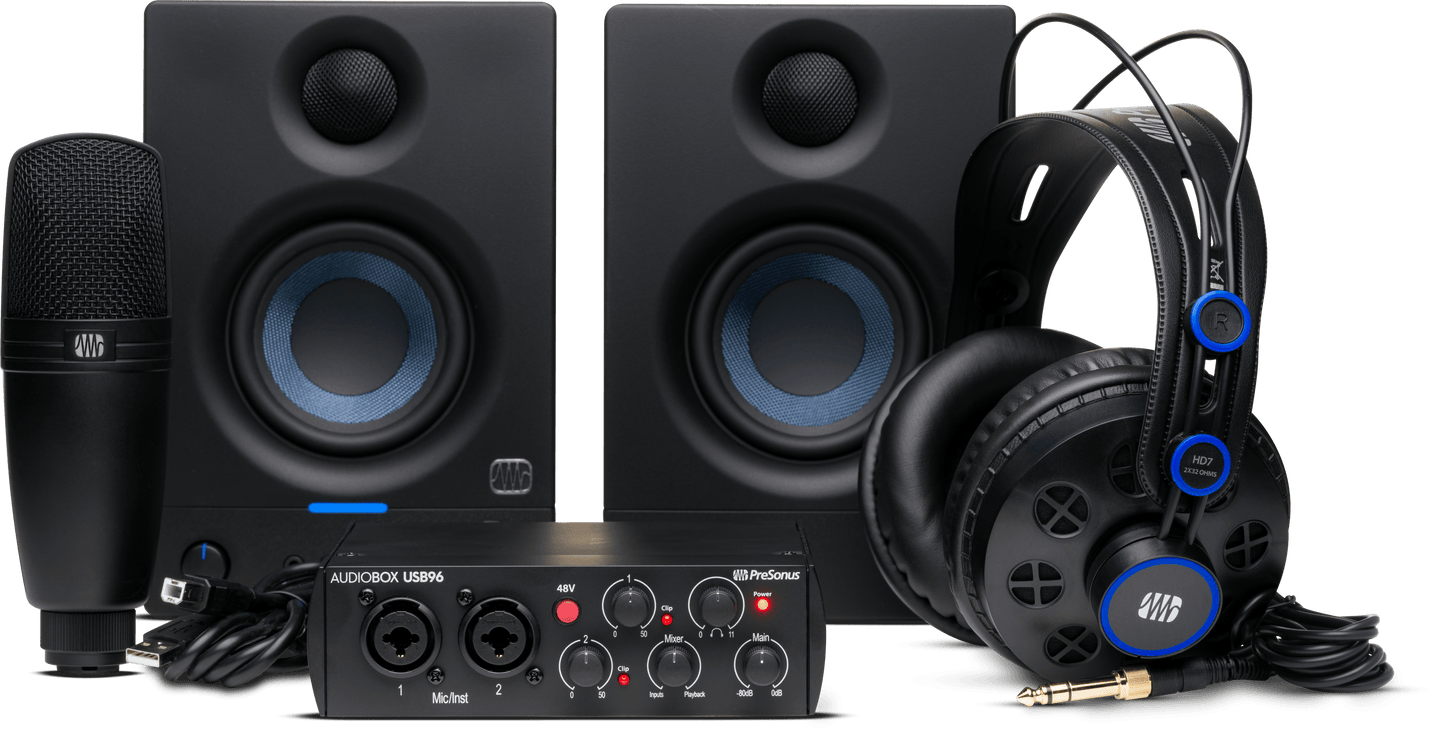

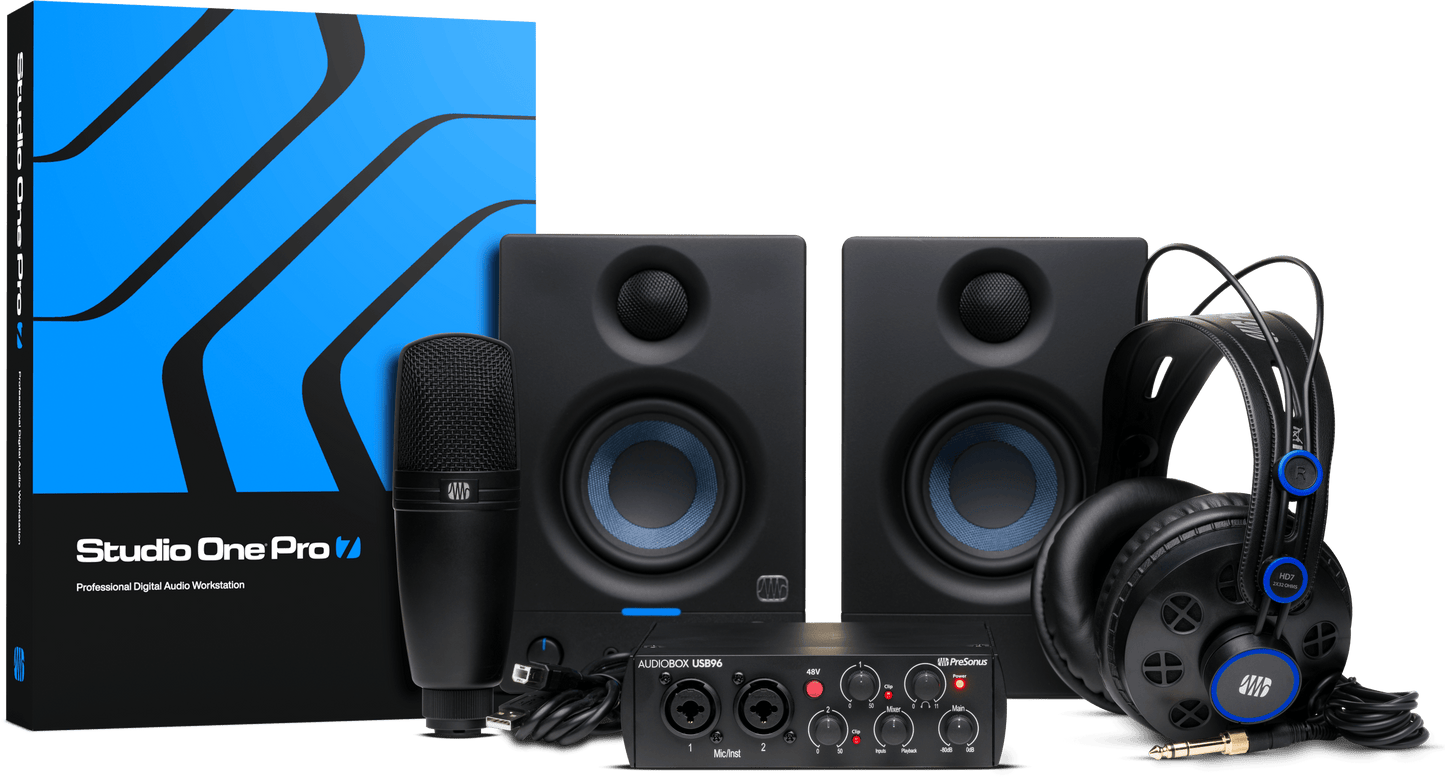

The PreSonus AudioBox 96k Complete Bundle is your one stop shop for self-made audio creators seeking studio-quality sound. Featuring the high fidelity AudioBox 96 USB 2x2 / 24 bit / 96 kHz Audio Interface, pro recording software access with 6 months of Studio One Pro+, a pair of powerful Eris 3.5 Studio Monitors packed with low-end punch, a pair of HD7 ergonomic high-definition headphones, and an M7 MKII professional cardioid condenser microphone, the PreSonus AudioBox 96k Complete Bundle gives you everything you need to create like a pro.

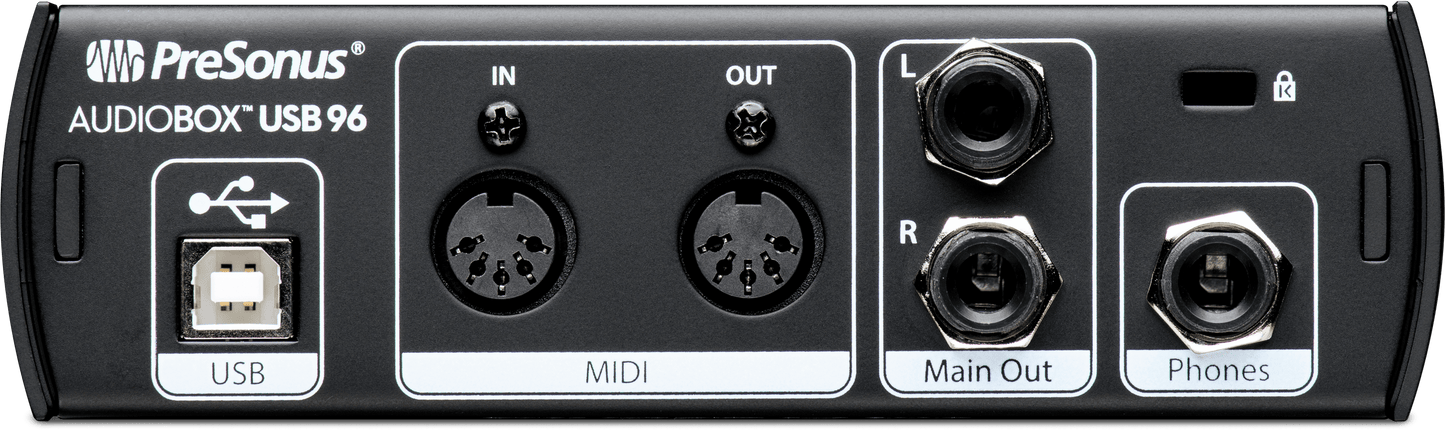

PreSonus AudioBox USB 96 USB Audio Interface
- 2x2, 24-bit / 96 kHz USB-C Audio Interface
- Two combination mic/instrument inputs with high-quality mic preamplifiers
- Low-noise, high-headroom design with +35 dBu of adjustable gain and switchable +48V phantom power for professional XLR condenser mics
- ¼-inch stereo headphone output
- Two balanced TRS ¼-inch main outputs for studio monitors or other speakers
Pro DAW Recording Software Access Included
- Perpetual License for Studio One 7 Pro
PreSonus Eris 3.5 Studio Monitors
- 5-inch, woven-composite, low-frequency driver
- 1-inch, ultra-low mass, silk-dome, high-frequency driver
- 50W, Class AB dual amplification
- 80 Hz to 20 kHz frequency response
- 98 dB SPL (Peak, @ 1 meter)
- High- and low-frequency Acoustic Tuning controls
- Balanced, ¼-inch TRS inputs; unbalanced, ⅛-inch stereo and RCA inputs; and integrated stereo headphone amplifier with front-panel ⅛-inch output
- Protection: RF interference, output-current limiting, over-temperature, turn-on/off transient, subsonic filter
- Power Saver mode (engages after 40 minutes)
- Comes with speaker wire, ⅛-inch TRS to stereo RCA cable, and stereo ⅛-inch TRS to ⅛-inch TRS cable
PreSonus M7 MKII Microphone
- Versatile cardioid condenser microphone with mic stand adapter and windscreen.
- Exceptional clarity throughout its frequency-response range, with a warm top end
- Cardioid polar pattern
- Mic stand adapter, 10' XLR cable, and mic pouch included
- 1-inch (25 mm) back electret condenser capsule
- Rugged construction
PreSonus HD7 Professional Monitoring Headphones
- Ergonomic high-definition headphones.
- High resolution drivers
- Precision-tuned acoustic chamber
- Extended bass response
- Comfortable and long-lasting ear pads
- Lightweight
Overview
Features
- PreSonus AudioBox USB 96 Audio Interface – High-fidelity 2x2 / 24 bit / 96 kHz Audio Interface.
- Professional Recording Software Included – Studio One Pro License
- PreSonus Eris 3.5 Studio Monitors – 3.5-inch media reference monitors packed with low-end punch and studio-quality sound.
- PreSonus M7 MKII Microphone – Professional cardioid condenser microphone.
- PreSonus HD7 Professional Monitoring Headphones - Ergonomic High Definition Headphones
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Specs
Electronics
Connectivity
USB 2.0
Headphone Jack
1/4" TRS Active Stereo
Input Impedance
10 kΩ
Inputs
Two - Combo Mic/Instrument Inputs (XLR Female Balanced, 1/4" TS Female Unbalanced)
Line Out
Two - 1/4" Balanced (Left and Right)
Output Impedance
150Ω ±30% (at 1 kHz)
Phantom Power
+48 VDC (±2 VDC)
Phantom Power Requierments
48V Phantom Power
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
AudioBox USB® 96 Complete Bundle, Black
Series
AudioBox USB®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Low Frequency (±6 dB, center 100 Hz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
Driver Type
50 mm, Neodymium
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Transducers
3.5" Woven Glass Fiber Composite
Microphone Types
Back-Electret Condenser
Monitor Inputs
1- Stereo 1/8", 2 - Balanced 1/4” TRS, 2 - Unbalanced RCA
Power Amplifier Type
Class AB
Inputs
Instrument Inputs Gain Range
(± 1 dB) +5 dB to 50 dB
Microphone Preamp Common Mode Rejection Ratio
(1 kHz, 55 dB Gain) > 45 dB
Microphone Preamp Frequency Response
(±3.0 dB) 20 Hz to 20 kHz
Microphone Preamp Gain Control Range
(± 1 dB) 0 dB to 35 dB
Microphone Preamp Input Impedance
(Balanced) 1200Ω
Microphone Preamp Maximum Input Level
(Unity Gain, 1 kHz @ 0.5% THD+N) -3 dBu
Microphone Preamp Signal To Noise Ratio
(Unity Gain, Ref. = +4 dBu, 20 Hz to 22 kHz) > 95 dB
Microphone Preamp Total Harmonic Distortion
THD+N (Unweighted, 1 kHz @ +4 dBu Output, Unity Gain) < 0.008%
Measurements
Headphone Weight Without Cable
7.8 oz (222g)
Product Depth
11.9” (30.23 cm)
Product Height
16" (40.6 cm)
Product Height/Length
16" (40.6 cm)
Product Width
15.8" (40.2 cm)
Miscellaneous
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Supported Sample Rates
44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Output
Headphone Outputs Frequency Response
(±1.0 dB) 20 Hz to 30 kHz
Headphone Outputs Maximum Output
60 mW/Channel @ 60Ω Load
Main And Line Outputs Output Impedance
51Ω
Performance
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB, DAC Dynamic Range (A-Weighted, 48 kHz Sample Rate): 105 dB
Headphone Frequency Response
10 Hz to 30 kHz
Headphone Maximum Power
300 mW
Headphone Rated Impedance
32Ω
Headphone Sensitivity
98 dB SPL (1 mW)
Maximum SPL
134 dB (at 1 kHz = 1% THD)
Microphone Frequency Response
20 Hz to 18 kHz
Microphone Sensitivity
-38 dB ±3 dB (0 dB=1V/Pa at 1 kHz)
Peak SPL
98 dB (@ 1 meter)
Polar Patern
Unidirectional
Speakers
Crossover Frequency
2.8 kHz
