AudioBox iOne

AudioBox iOne

View full details

AudioBox iOne

      Overview

      Bring your studio with you and record wherever you go! The two-input PreSonus® AudioBox® iOne lets you capture voice and instrument on macOS, Windows and iPadOS devices. Simply plug in your guitar and microphone, and you're ready to create! USB bus-powered and bundled with powerful, easy-to-use recording software, the AudioBox iOne makes it easy to capture ideas and create professional-quality recordings.

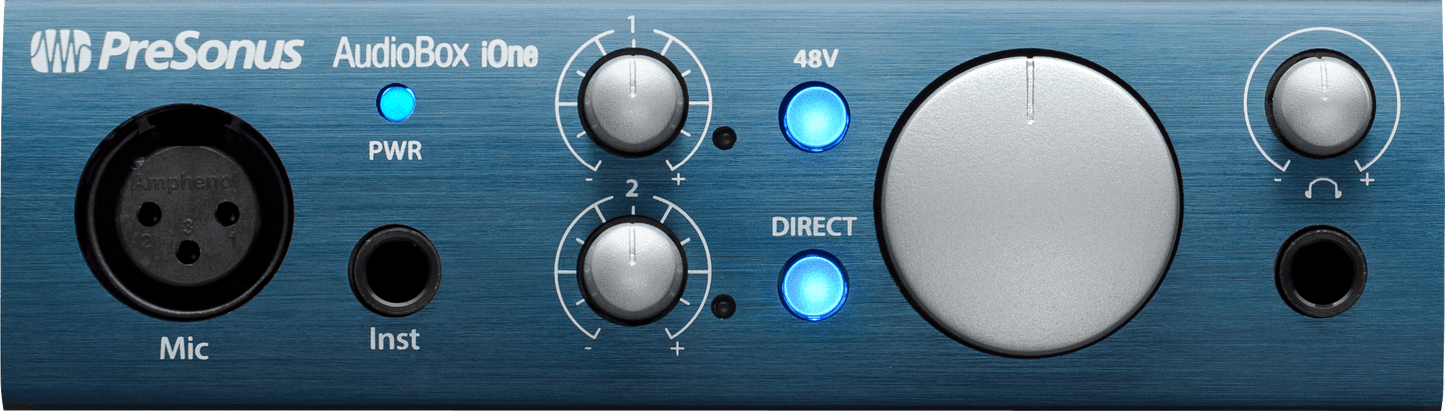

      The AudioBox iOne offers one instrument input for your guitar or bass and one mic input with a sweet-sounding Class A mic preamp that will capture your voice in all its glory, plus phantom power for condenser microphones. High-quality 24-bit, 96 kHz digital converters; balanced ¼-inch outputs; and a loud, clear headphone output with independent level control ensure you hear every detail. An internal analog mixer enables you to monitor recorded tracks and overdubs with zero latency.

      Record in stereo on iPad with free PreSonus Capture® Duo or record up to 32 tracks with affordable Capture for iPad. Then wirelessly beam your iPad tracks to included Studio One™ recording and production software for macOS and Windows for editing and mixing - or do the whole project with Studio One.

      The AudioBox iOne can sit on a tabletop or fit in the pocket of a backpack and works with standard iOS power accessories. Its metal chassis is built to travel, yet it weighs just 1.35 pounds (0.62 kg). Your AudioBox iOne is ready to go wherever sound takes you.

      Computer System Requirements

      Overview

      Features

      • Bus-powered USB 2.0/iPad audio interface
      • 24-bit resolution; 44.1, 48, 88.2, and 96 kHz sampling rate
      • 1 instrument input and 1 microphone input with low-noise, high-headroom, Class A mic preamplifier and +48V phantom power
      • 2 balanced ¼-inch TRS main line-level outputs
      • Stereo headphone output with independent level control
      • Zero-latency monitoring via internal analog mixer (fixed 50/50 mix via Direct button)
      • Large main volume knob
      • Signal present and clipping LEDs
      • Includes Studio One™ Artist DAW software (macOS/Windows) and Studio Magic Software Suite (more than $1,000 value!); compatible with recording software for macOS, Windows, iOS and iPadOS
      • Metal chassis with Kensington lock hole

      Downloads

      • Safety Document (Multi-Lingual)
      • Info Sheet - AudioBox iOne (English)
      • Owner's Manual - AudioBox iOne/iTwo - AudioBox iOne (English)
      • Quick Start Guide - AudioBox iOne (Multi-Lingual)
      • Universal Control 4.3.3 Milestone Release Notes - English
      • PreSonus Universal Control Software Reference Manual - English

      • Universal Control v4.3.3.100963 (Windows)
      • Universal Control v4.3.3.100963 (Mac)
      • AudioBox VSL v1.3 (Windows)
      • AudioBox VSL v1.3 (Mac)
      • Universal Control 1.8 (Windows)
      • Universal Control 1.8 (Mac)
      • Universal Control 1.8.3.40882 (Mac)
      • Need an older version? Click here

      Highlights

      AudioBox iOne World-class recording software included.

      World-class recording software included.

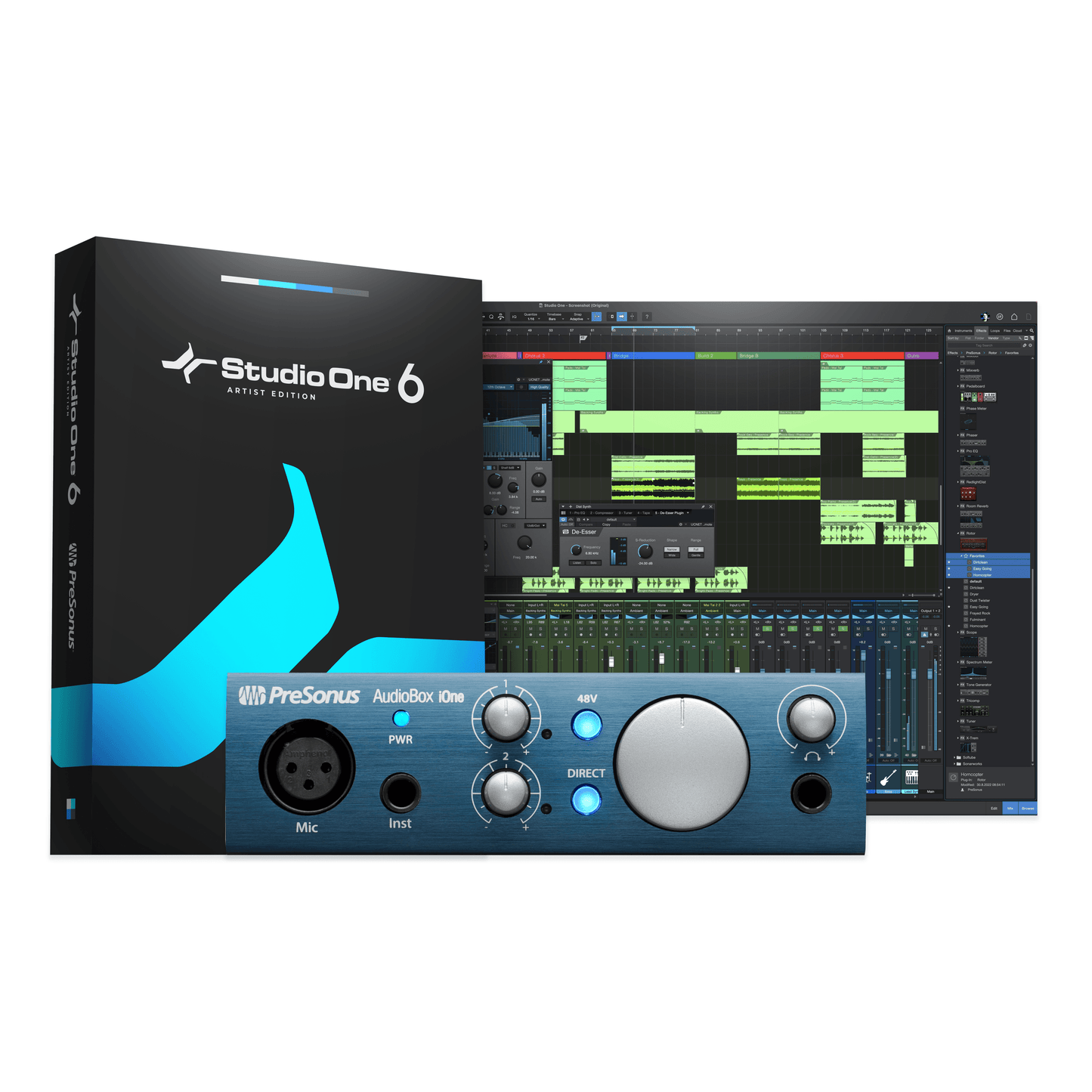

      The AudioBox® iOne works with virtually all macOS, Windows, iOS and iPadOS audio-recording software and comes with a license for PreSonus® Studio One™ Artist for a complete recording solution. Studio One is easy to learn and enables you to compose, record and produce without getting distracted by the tools.

      AudioBox iOne Make your own magic.

      Make your own magic.

      Expand your Studio One™ experience with the Studio Magic Suite of software. Studio Magic iincludes over $1,000 USD worth of music software including plug-ins, loops, virtual instruments, effects and tutorials.

      Specs

      Connectivity

      USB 2.0

      Headphone Jack

      1/4" TRS Active Stereo

      Inputs

      Two - 1 Mic/Line, 1 Line

      Phantom Power

      +48 VDC (±2 VDC)

      VoltageRequirements

      100-240 VAC, 50-60 Hz

      Color

      Blue

      Product Name

      AudioBox® iOne, Blue

      Series

      AudioBox®

      Microphone Input Connection Type

      XLR Female, Balanced

      Microphone Preamp Common Mode Rejection Ratio

      >65 dB (1 kHz, 52 dB Gain)

      Microphone Preamp Frequency Response

      10 Hz to 40 kHz (±3.0 dB)

      Microphone Preamp Gain Control Range

      0 dB to 52 dB (±1 dB)

      Microphone Preamp Input Impedance

      1200Ω

      Microphone Preamp Maximum Input Level

      +10 dBu (Unity Gain, 1 kHz at 0.5% THD+N)

      Microphone Preamp Signal To Noise Ratio

      >95 dB (Unity Gain, Reference = +4 dBu, 20 Hz to 22 kHz)

      Microphone Preamp Total Harmonic Distortion

      <0.008% (Unweighted, 1 kHz at +4 dBu Output, Unity Gain)

      Product Depth

      5.31" (13.49 cm)

      Product Height

      1.71” (4.35 cm)

      Product Width

      5.9" (15 cm)

      Commodity Code

      8517620000

      Power Cable

      USB 2.0 Bus-Powered

      Supported Sample Rates

      44.1, 48, 88.2, 96 (kHz)

      Headphone Outputs Frequency Response

      20 Hz - 30 kHz (±1.0 dB)

      Headphone Outputs Impedance Working Range

      10Ω

      Headphone Outputs Maximum Output

      60 mW/Channel at 60Ω Load

      Line Outputs Connection Type

      1/4" TRS Female

      Main And Line Outputs Output Impedance

      51Ω

      Digital Audio Bit Depth

      24

      Digital Audio Dynamic Range

      105 dB (A-Weighted, 48 kHz Sample Rate)
