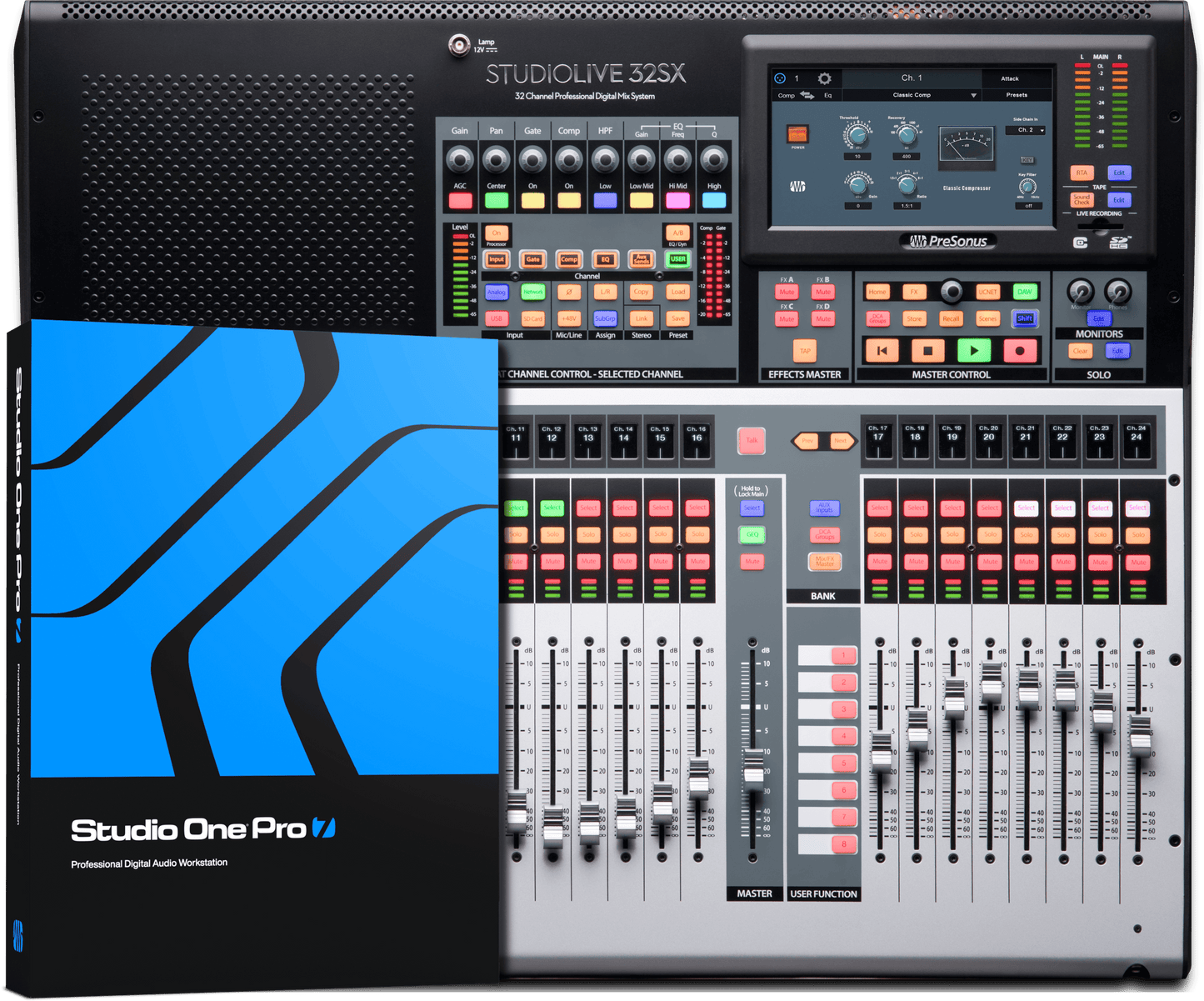

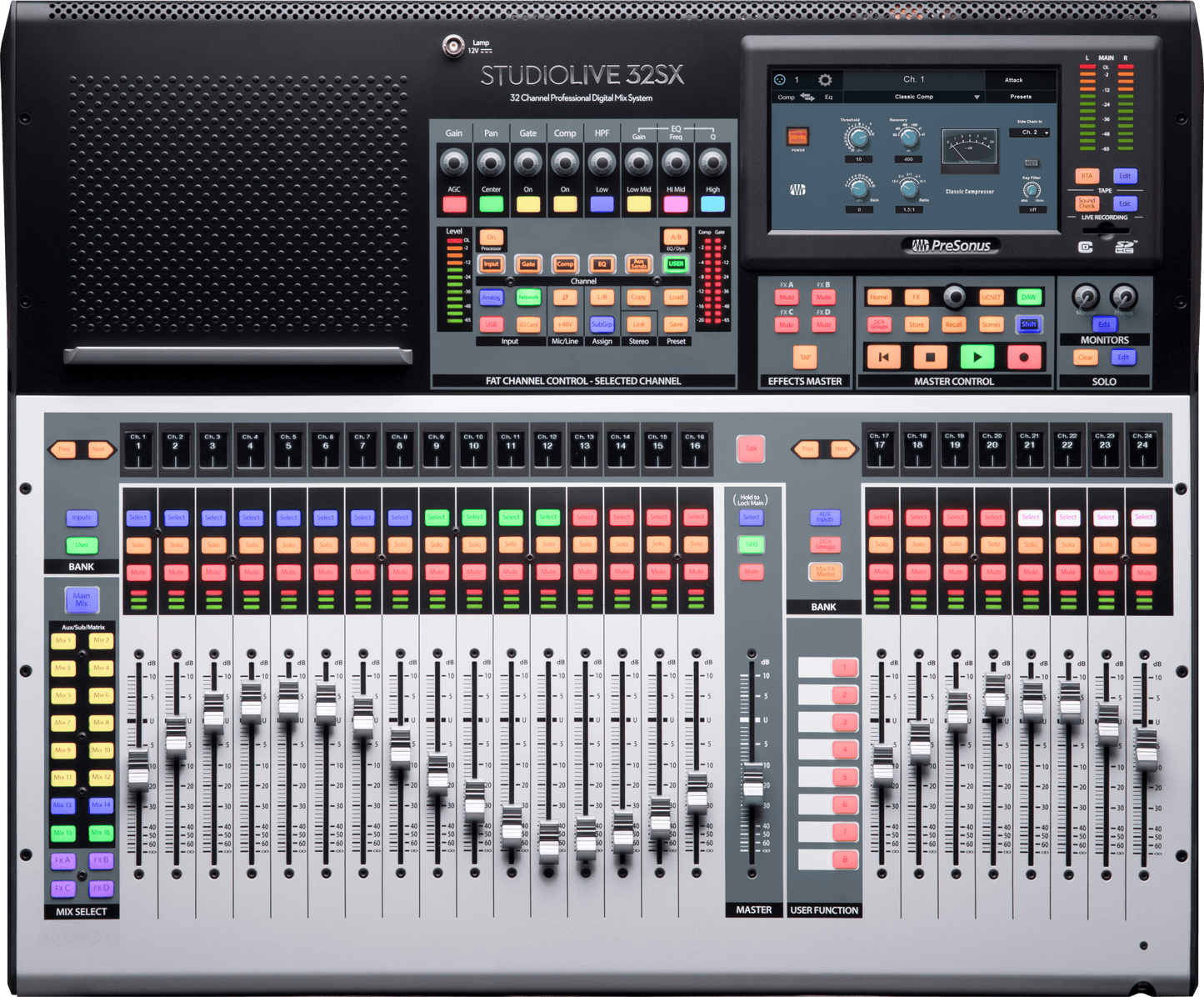

StudioLive® Series III 32SX Digital Console Mixer
StudioLive® Series III 32SX Digital Console Mixer
SKU: 2779200403
Prix habituel
$2,999.99
Prix habituel
$2,999.99
Prix promotionnel
$2,999.99
Prix unitaire
par
Our portable powerhouse 40-channel digital mixer and USB audio interface with a complete suite of integrated software.
Impossible de charger la disponibilité du service de retrait
StudioLive® Series III 32SX Digital Console Mixer
Prix habituel
$2,999.99
Prix habituel
$2,999.99
Prix promotionnel
$2,999.99
Prix unitaire
par
Aperçu
Dotée de la puissance de traitement, du son de qualité studio et des options de routage flexibles qui ont fait la renommée des consoles de mixage StudioLive®, la StudioLive 32SX est la solution compacte idéale pour le mixage numérique à 32 canaux. Animée par le moteur DSP FLEX PreSonus® à double cœur, la console de mixage numérique StudioLive 32SX possède 40 canaux de mixage, 26 bus de mixage et 286 processeurs simultanés, dont 4 unités d'effets stéréo et des modélisations sous forme de plug-in pour Fat Channel sur chaque entrée et mixage. Le profil mince de la StudioLive 32SX et le flux de travail avec deux zones de faders conviennent idéalement aux environnements de mixage ayant un espace de bureau limité.Avec 32 préamplis micro XMAX et 16 sorties de mixage symétriques, la StudioLive 32SX associe connectivité et puissance dans une utilisation efficace de l'espace.
Une interface audio intégrée de 128 canaux (64x64) vous permet d'enregistrer avec des préamplis analogiques à rappel numérique et un rack complet d'égaliseurs et de processeurs dynamiques vintage pour chaque canal et bus. Modélisés d'après des classiques analogiques des studios, ces plug-ins de compresseur et d'égaliseur sont chargés nativement à la fois dans la StudioLive 32SX et dans Studio One™, offrant ainsi une flexibilité ultime pour le mixage et l'enregistrement.
Un ensemble complet de logiciels d'enregistrement facilite l'enregistrement et l'intégration des pistes d'accompagnement lors de vos prestations live. Vous recevez également le logiciel d'enregistrement Capture® de PreSonus avec son mode de balance de son virtuelle entièrement intégré qui fonctionne directement dans votre console de mixage numérique StudioLive 32SX ou sur votre ordinateur Mac® ou Windows®. Vous pouvez même utiliser les faders tactiles motorisés de votre StudioLive pour contrôler Studio One !
Overview
Caractéristiques
- Portable, and flexible digital console for installed sound, mobile applications, and recording with dual-core FLEX DSP Engine powering 286 simultaneous processors
- Fully recallable, 38-input, 40-channel digital mixing console
- 24 Mix buses: 16 FlexMixes (Aux-, Matrix-, or Subgroup- configurable), 4 FX Mixes, 4 Subgroups
- 25 touch-sensitive, motorized faders
- Built-in 64x64 AVB audio networking makes connecting other StudioLive Series III mixers, PreSonus NSB stage boxes, EarMix 16M personal monitor mixers plug-and-play
- Built-in 128-channel (64x64) USB interface - the most of any digital mixer on the market
- Onboard multitrack SD Card recorder with true Virtual Soundcheck
- FLEX FX multi-effects processor with 4 slots to load legendary reverb emulations and delays with 4 dedicated effects buses
- Complete professional solution: suite of integrated software, including 12 months of Studio One® Pro + and Capture®
Téléchargement
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
En vedette
Superior sound
In 1995, PreSonus patented digital control over analog circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analog XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity.
The FlexMix difference.
Highly configurable, the StudioLive 32S provides 16 FlexMixes that can be used as aux buses, subgroups, or matrix mixes. Four dedicated effects buses and four additional subgroups provide a total of 24 mix buses plus an independent solo bus and the main mix. You also get 24 DCAs to control groups of channels easily.
One-click recording
The StudioLive 32SX is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!
Studio One Pro 7 DAW Software License Included.
Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.
Spécifications
Électronique
Headphone Jack
1/4" TRS Active Stereo
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
85W (Continuous)
Voltage
100-120V
Général
Color
Gray
Product Name
StudioLive® Series III 32SX Digital Console Mixer, Gray
Series
StudioLive®
Accastillage
Digital Audio AES EBU Output
XLR Male
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Tape Connection Type
RCA Female, Unbalanced (Stereo Pair)
Entrées
Line Input Connection Type
1/4" TRS Female, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
=+18 dBu
Line Inputs Signal To Noise Ratio
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Tape Maximum Input Level
+12 dBu, ±0.5 dBu
Measurements
Product Depth
22.97” (583.84 mm)
Product Height
6.51” (165.36 mm)
Product Width
25.98” (659.81 mm)
Divers
Digital Audio Internal Processing
32-Bit, Floating Point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS Female, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
Tape Maximum Output Level
+18 dBu, ±0.5 dBu
Tape Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
