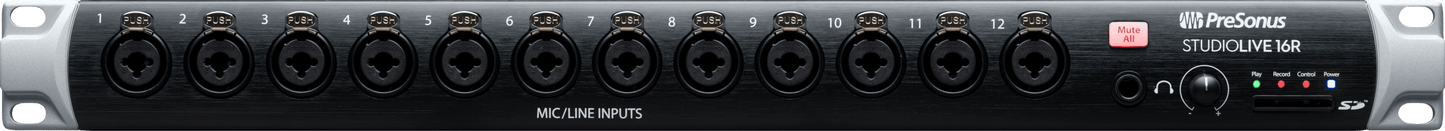

StudioLive® Series III 16R Digital Rack Mixer
StudioLive® Series III 16R Digital Rack Mixer
SKU: 2779200201
Prix habituel
$999.99
Prix habituel
$999.99
Prix promotionnel
$999.99
Prix unitaire
par
This 18-input, 18-channel rack mixer is four audio tools in a single rackspace.
Impossible de charger la disponibilité du service de retrait
StudioLive® Series III 16R Digital Rack Mixer
Prix habituel
$999.99
Prix habituel
$999.99
Prix promotionnel
$999.99
Prix unitaire
par
Aperçu
18-input, 18-channel rack mixer with stagebox and monitor mixer modes
La console de mixage numérique StudioLive® 16R, c'est quatre outils audio dans une seule unité de rack. Utilisez-la comme une console de mixage numérique autonome avec le logiciel de mixage à distance UC Surface. Associez-la à votre table de mixage StudioLive série III pour l'utiliser comme boîtier de scène ou comme console de mixage de retour intégrée. Connectez-la aux consoles de mixage de retour EarMix 16M pour le système de retour personnel ultime. Branchez-la à l'ordinateur de votre studio et vous disposerez d'une interface audio USB bidirectionnelle à 36 canaux (18x18) avec des plug-ins de traitement dynamique et d'égaliseur vintage modélisés sur chaque entrée et chaque bus. Seule ou au sein d'un système audio complet, aucune autre console de mixage numérique en rack n'offre autant de flexibilité et de puissance.
Dans la StudioLive 16R, le moteur monocœur DSP FLEX PreSonus® anime 18 canaux de mixage, 10 bus de mixage et 130 processeurs simultanés, dont 2 effets stéréo et des modélisations sous forme de plug-in pour Fat Channel sur chaque canal d'entrée et bus de mixage. C'est une véritable console de mixage numérique à 16 canaux qui est à l'aise dans toute taille de configuration. Il suffit de la connecter à un routeur sans fil standard pour contrôler tous les paramètres de mixage à partir de votre iPad®, tablette Android™ ou ordinateur Windows® Touch en utilisant UC Surface. UC Surface a été conçu pour rendre le mixage sur écran tactile aussi intuitif que celui sur faders.
Une interface audio intégrée de 36 canaux (18x18) vous permet d'enregistrer avec des préamplis analogiques à rappel numérique et un rack complet d'égaliseurs et de processeurs dynamiques vintage pour chaque canal et bus. Modélisés d'après des classiques analogiques des studios, ces plug-ins de compresseur et d'égaliseur sont chargés nativement à la fois dans la StudioLive 16R et dans Studio One™, offrant ainsi une flexibilité ultime pour le mixage et l'enregistrement.
Overview
Caractéristiques
- Powered by the new single-core PreSonus® FLEX DSP Engine to provide the most processing of any digital mixer in its class
- 18 input-channel digital rack mixer with 16 digitally controlled XMAX mic/line inputs, 2 FLEX FX returns, 10 mix buses, 6 FlexMixes (Aux, Subgroup, Matrix), 2 dedicated FLEX FX buses, Stereo Main bus
- 130 simultaneous processors: HPF, Gate/Expander, Compressor with Fat Channel plug-in models, 4-band/6-band parametric EQ with Fat Channel plug-in models, Limiter
- 31-band graphic EQ
- 4 FLEX FX slots featuring legendary classic reverb emulations and delays
- State Space Modeled Fat Channel compressor and EQ plug-ins available on every input channel and output bus
- 6 DCAs to control groups of channels
- 36-channel (18x18) recording over USB
- Onboard stereo SD recorder with true Virtual Soundcheck mode
- AVB networking onboard (64x64) to connect with other mixers, NSB-series stage boxes, EarMix 16M personal monitor mixers, and more
- Monitor Mix and Stage Box modes for use with StudioLive® Series III console mixers
- Pair with EarMix 16M personal monitor mixers for the ultimate personal monitor system
- Remote control every mix function from your computer, iPad®, or Android™ tablet with Universal Control (included)
- Put your musicians' monitor mix under their fingers with QMix®-UC (included) for iOS® or Android
- Capture® 3.0 multitrack software included
- Advanced Studio One® integration (12 Months Studio One Pro + Included)
- Ableton® Live Lite included
Téléchargement
Don't see what you're looking for?
Log in to your my.presonus.com account.
Support
Resources
Don't see what you're looking for?
Log in to your my.presonus.com account.
En vedette
The perfect personal monitoring system.
When combined with up to 16 EarMix 16M personal monitor mixers, the StudioLive 16R is the most powerful personal monitoring hub available. With 6 FlexMix buses that can be configured as aux mixes, subgroups, or matrix mixes, the StudioLive 16R makes it easy to create simplified mixes for musicians on stage. No other personal monitoring system offers so much power and flexibility.
The digital stage box.
As a digital stage box, the StudioLive 16R provides 16 remote digitally controlled XMAX preamps that can be gain-staged right from your StudioLive Series III console Fat Channel. The outputs of the StudioLive 16R automatically mirror the mixes available on your console mixer, making routing fast and easy.
One-click recording
The StudioLive 16R is tightly integrated with PreSonus® Capture® live-recording software. Capture is designed to make recording easy by instantly configuring with your mixer and allowing you to record every channel plus the main mix with a single mouse click. Even better, your Capture sessions open natively in Studio One!

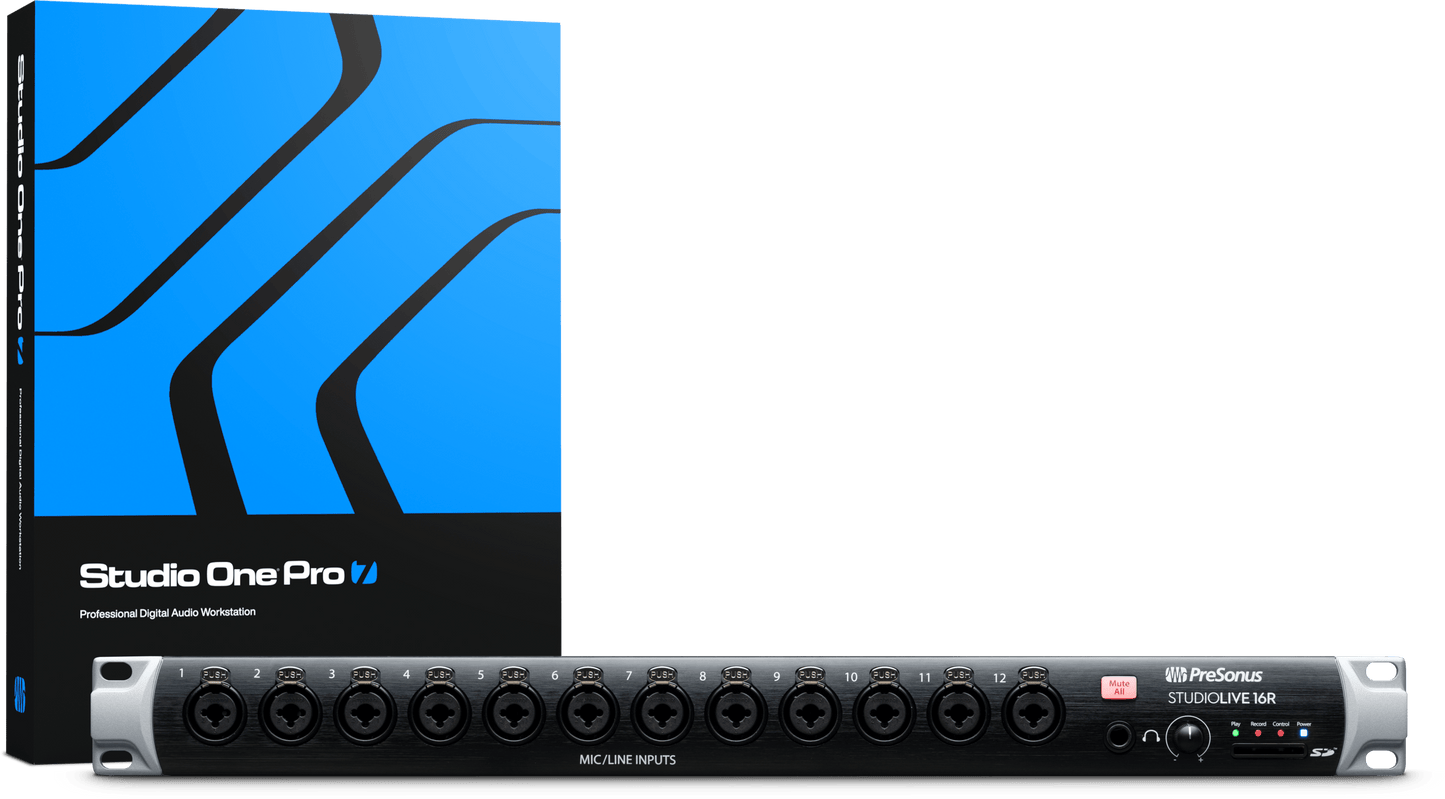

Studio One Pro 7 DAW Software License Included.
Your hardware registration includes a Studio One Pro 7 perpetual license (yours to keep) and 12 months of access to all the add-ons, exclusive content, and extras in Studio One Pro+.
Spécifications
Électronique
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
35W (Continuous)
Voltage
100-120V
Général
Color
Black
Product Name
StudioLive® Series III 16R Digital Rack Mixer, Black
Series
StudioLive®
Accastillage
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Entrées
Line Input Connection Type
RCA Female, Unbalanced (Stereo Pair)
Line Inputs Maximum Level
+12 dBu, ±0.5 dBu
Microphone Input Connection Type
Combo Locking XLR Mic - 1/4” TRS Line
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
=+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Measurements
Product Depth
12" (305mm)
Product Height
3.5” (90 mm)
Product Width
19" (483mm)
Divers
Digital Audio Internal Processing
32-bit, floating point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
100 mW/ch. @ 60Ω Load
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
=+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
=+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Performance
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
ADC Dynamic Range: 115 dB (A-Weighted, 48 kHz), DAC Dynamic Range: 115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
=+18 dBu
Digital Audio Total System Latency
1.9 ms (local routing, analog in-analog out, all processing active)
