AudioBox 44VSL

AudioBox 44VSL

SKU: AUDIOBOX44VSL

Afficher tous les détails

AudioBox 44VSL

      Aperçu

      The affordable professional recording solution

      We don’t want to push the Goldilocks analogy too far but if two-channel audio interfaces are too small for your needs, and interfaces with eight or more channels are overkill, then our four-in, four-out AudioBox® 44VSL will be just right. With the AudioBox 44VSL and included Studio One® Artist software, you can record up to four tracks at a time with professional-caliber 24-bit, 96 kHz audio quality, using crystal-clear, high-headroom XMAX; preamps. And the AudioBox 44VSL is ready to travel, thanks to a rugged, compact enclosure, so you can create your next hit in your personal studio or your hotel room.

      Overview

      Caractéristiques

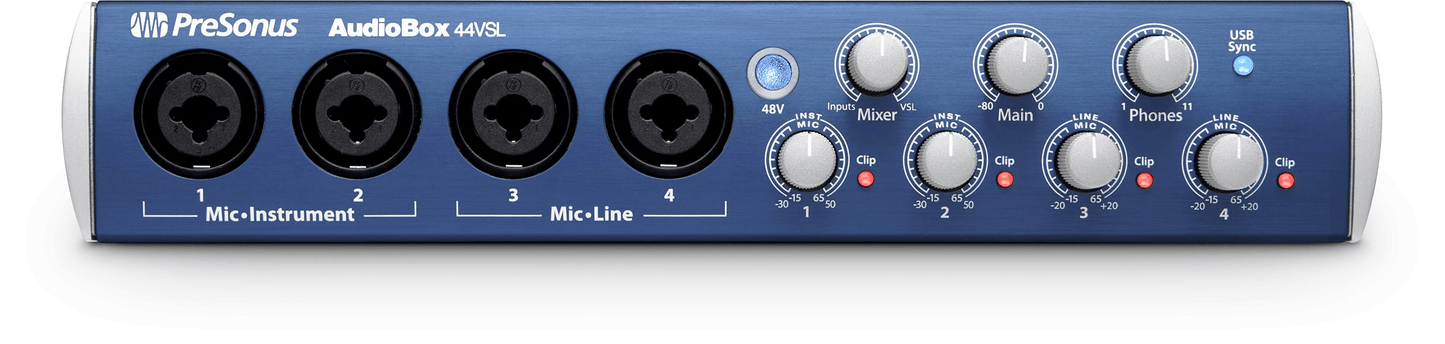

      • 2 dual-purpose, front-panel, mic/instrument input channels with:
        • Combo XLR mic and balanced ¼" instrument input
        • Class A XMAX mic / instrument preamp
        • Individual channel-trim controls with 0 to +35 dBu mic gain range
      • 2 dual-purpose, front-panel, mic/line input channels with:
        • Combo XLR mic and balanced ¼" line input
        • Class A XMAX mic preamp
        • Individual channel-trim controls with 0 to +35 dBu mic gain range

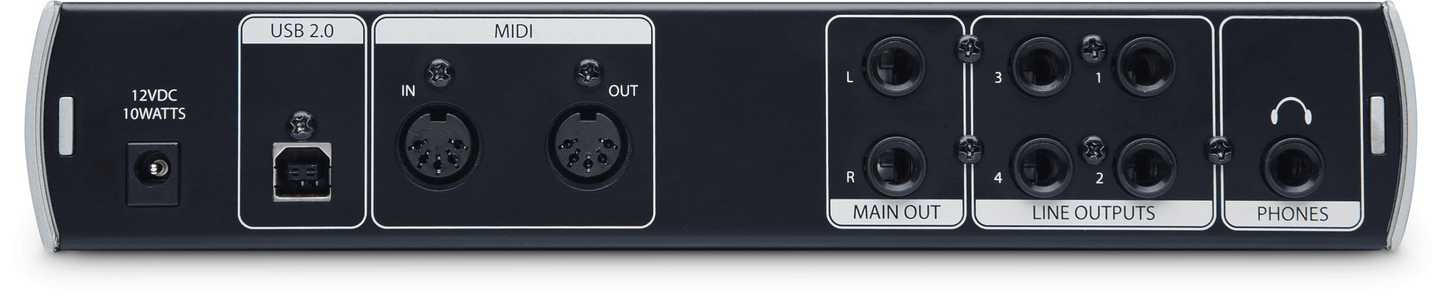

      • 2 balanced ¼” main (L/R) line outputs
      • 4 balanced ¼” auxiliary (L/R) line outputs
      • 1 stereo ¼” headphone output with level control
      • MIDI In/Out
      • 1 USB 2.0 port
      • True +48V phantom power for condenser microphones (global)
      • Mixer control (blends the input signal with the computer playback stream for zero-latency analog monitoring)
      • Main-output level control
      • Power/USB sync LED
      • LED clip indicator for each channel
      • Mix, adjust input and playback-returns levels, and add effects and signal processing from your laptop or other computer
      • 24-bit resolution and 44.1, 48, 88.2, and 96 kHz sampling rate
      • Professional-grade A/D/A converters (+114 dBu dynamic range)
      • Zero-latency analog monitoring with playback/input Mix control knob
      • Mac®- and Windows®-compatible, including Mac OS X 10.7 Lion and Windows 7
      • Supports ASIO, Core Audio, Direct Sound (Windows XP), Windows Audio Session API (Windows Vista and Windows 7)
      • 1/2U rack-mountable (screw-mount to standard rack tray, not included)
      • Road-rugged construction with all-metal chassis and metal knobs
      • Weighs 2.6 lb. (1.2 kg)
      • 12 VDC external power supply (included)
      • Studio One® 3 Artist

      Téléchargement

      Support

    • Owner's Manual - German
    • Owner's Manual - English
    • Owner's Manual - Spanish
    • AudioBox VSL Series 2014 Brochure
    • Owner's Manual - French
    • Quick Start Guide - French
    • Quick Start Guide - Spanish
    • 2-Year Limited Non-Transferable Warranty (Multilingual)
    • Quick Start Guide - German
    • Quick Start Guide - English
    • Universal Control Software Reference Manual - English

      • Resources

    • AudioBox VSL v1.2.2 (Mac)
    • AudioBox VSL v1.3 (Windows)
    • AudioBox VSL v1.3 (Mac)
    • AudioBox VSL v1.2 (Windows)
    • AudioBox VSL v1.2 (Mac)
    • AudioBox VSL v1.2.1 (Windows)
    • AudioBox VSL v1.2.2 (Windows)
    • Need an older version? Click here
