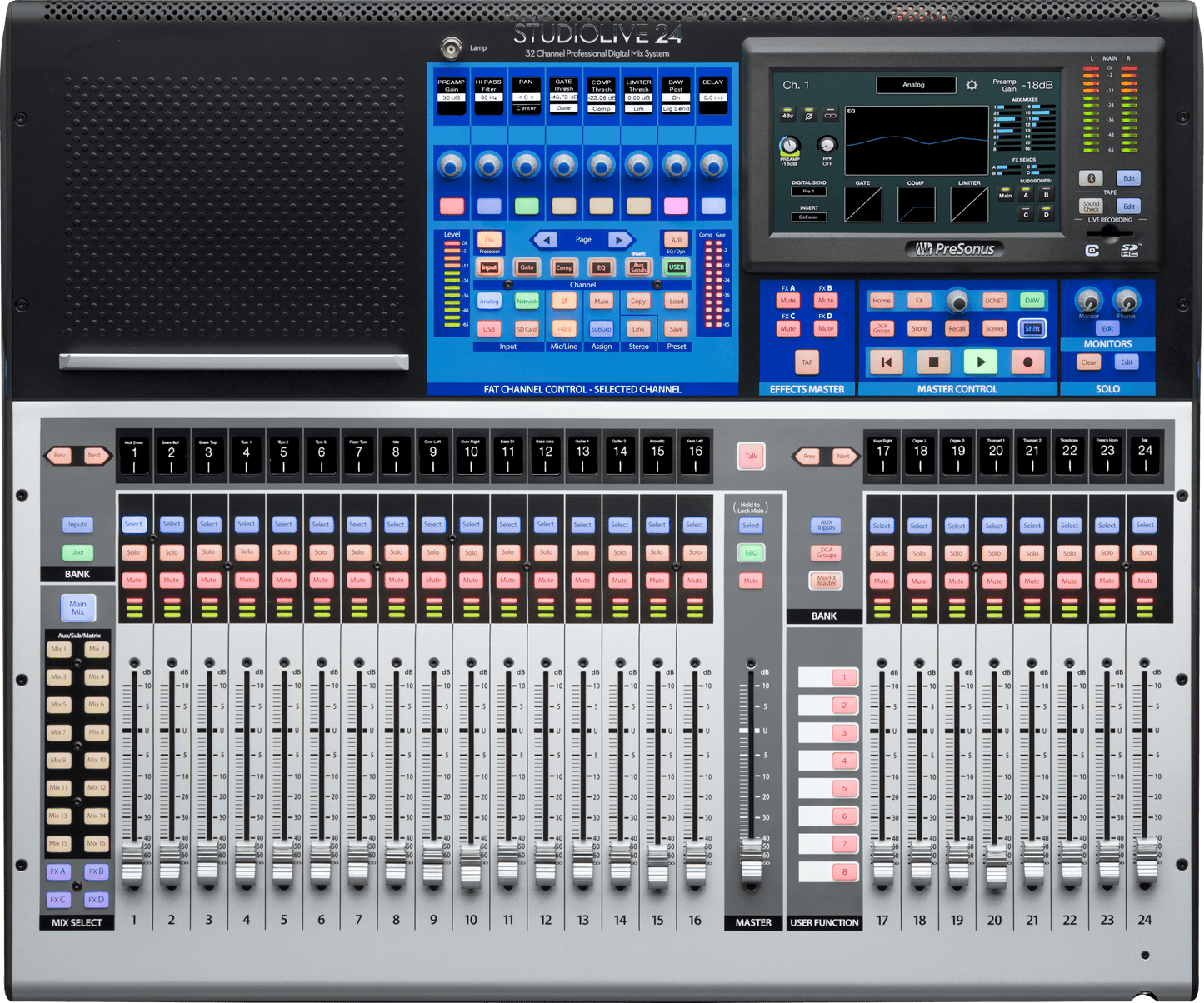

StudioLive® Series III 24 Digital Console Mixer
StudioLive® Series III 24 Digital Console Mixer
No se pudo cargar la disponibilidad de retiro
Visión General
The 32-channel StudioLive® 24 is the most powerful and flexible digital mixer available for live sound and recording. PreSonus® gave the StudioLive 24 the works: 40 total inputs; extensive AVB networking; more recording tracks over USB than any other digital mixer; touch-sensitive motorized faders; and a host of State-space modeled Fat Channel plug-ins that let you expand your processing options. Packaged with a full suite of integrated software, including PreSonus' Studio One® DAW and Capture™ live-recording software, the StudioLive 24 is a groundbreaking professional digital mixer and USB audio interface in a compact, scalable design.
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
Don't see what you're looking for?
Log in to your my.presonus.com account.
Especificaciones
Electrónica
Phantom Power
+48 VDC (±2 VDC)
Power Consumption
85W (Continuous)
VoltageRequirements
100-230 VAC, 50-60 Hz
General
Color
Gray
Product Name
StudioLive® Series III 24 Digital Console Mixer, Gray
Series
StudioLive®
Hardware
Digital Audio AES EBU Output
XLR Male
Digital Audio AVB Audio Network Ports
Locking XLR, Ethernet
Digital Audio Bluetooth Input
4.1, Stereo
Digital Audio Network Control Port
RJ-45
Digital Audio USB Recording Port
USB 2.0, Type-B
Tape Connection Type
RCA Female, Unbalanced (Stereo Pair)
Entradas
Line Input Connection Type
1/4" TRS, Balanced
Line Inputs Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Line Inputs Impedance
10 kΩ
Line Inputs Maximum Level
+18 dBu
Line Inputs Signal To Noise Ratio
94 dB (Ref =+4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Line Inputs Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Microphone Input Connection Type
XLR Female, Balanced
Microphone Preamp Common Mode Rejection Ratio
65 dB (1 kHz at Unity Gain)
Microphone Preamp Frequency Response
20-20 kHz (±0.5 dBu at Unity Gain)
Microphone Preamp Gain Control Range
0 dB to 60 dB (±1 dB)
Microphone Preamp Input Impedance
1 kΩ
Microphone Preamp Maximum Input Level
+12 dBu (Unity Gain)
Microphone Preamp Signal To Noise Ratio
94 dB (Ref = +4 dB, 20 kHz BW, Unity Gain, A-Weighted)
Microphone Preamp Total Harmonic Distortion
<0.005%, +4 dBu, 20-20 kHz, Unity Gain, Unweighted
Tape Maximum Input Level
+12 dBu, ±0.5 dBu
Medidas
Product Depth
22.97” (583.84 mm)
Product Height
6.51” (165.36 mm)
Product Width
25.98” (659.81 mm)
Varios
Digital Audio Internal Processing
32-Bit, Floating Point
Power Cable
IEC
Recommended Ambient Operating Temperature
0˚ to 40˚ Celsius / 32˚ to 104˚ Fahrenheit
Supported Sample Rates
48 kHz, 44.1 kHz
Output
Headphone Outputs Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Headphone Outputs Maximum Output
150 mW /Channel at 60 Ω
Headphone Outputs Signal To Noise Ratio
96 dB, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Headphone Outputs Total Harmonic Distortion
0.01%, 1 kHz, Maximum Gain, 20 Hz BW, Unweighted
Line Outputs Connection Type
1/4" TRS, Balanced
Line Outputs Maximum Output Level
+18 dBu, ±0.5 dBu
Line Outputs Output Impedance
100 Ohms
Tape Maximum Output Level
+18 dBu, ±0.5 dBu
Tape Output Impedance
100 Ohms
XLR Outputs Maximum Output Level
+24 dBu, ±0.5 dBu
XLR Outputs Output Impedance
100 Ohms
Desempeño
Crosstalk (Adjacent Channels)
-87 dB (Reference = +4 dBu, 20 Hz-20 kHz, Unweighted)
Digital Audio Bit Depth
24
Digital Audio Dynamic Range
115 dB (A-Weighted, 48 kHz)
Digital Audio Reference Level For Zero dBFS
+18 dBu
Digital Audio Total System Latency
1.9 ms
