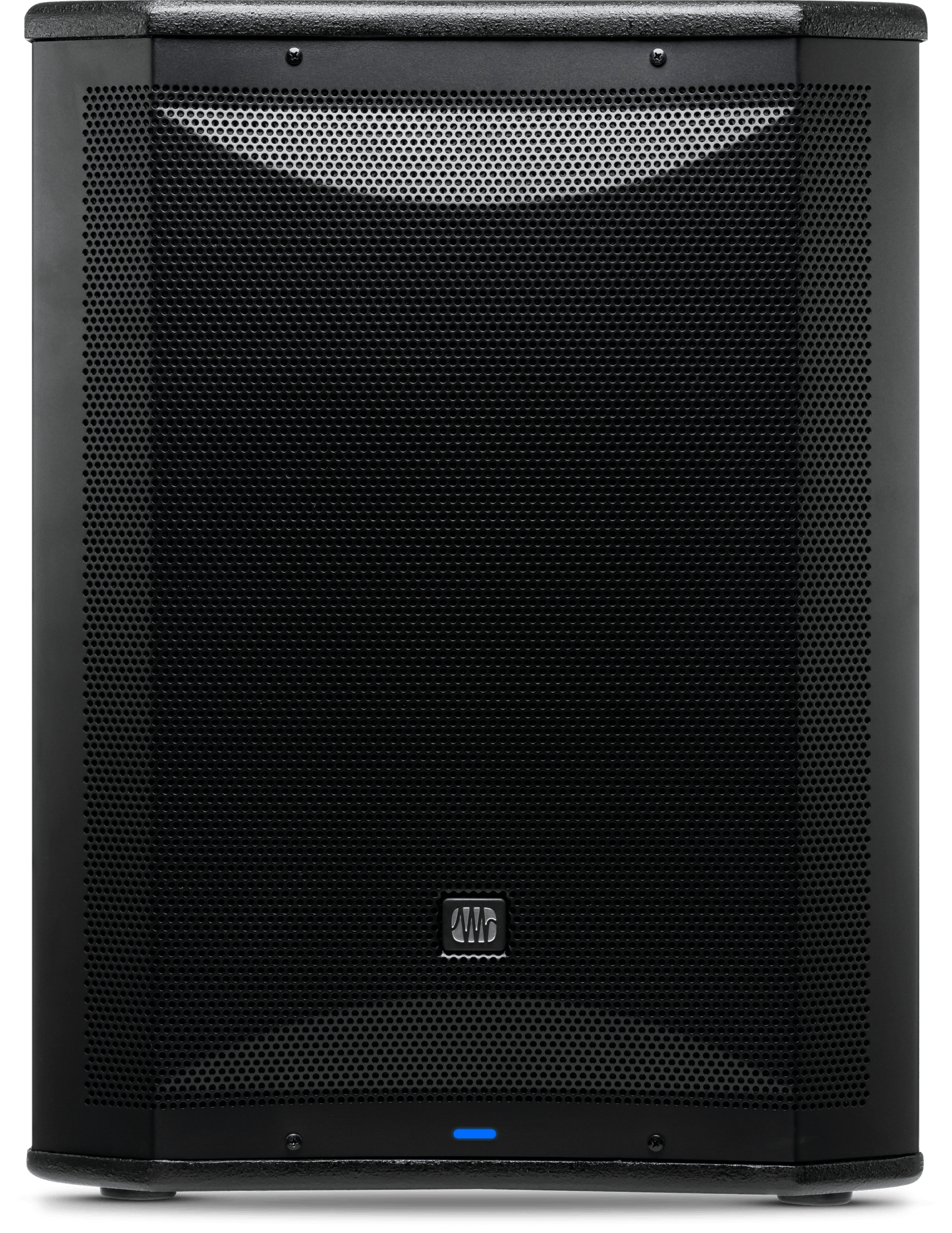

AIR XD Sub 15 1 x 15” Active Extended Definition Subwoofer
AIR XD Sub 15 1 x 15” Active Extended Definition Subwoofer
No se pudo cargar la disponibilidad de retiro
Visión General
- The PreSonus AIR XD Sub 15 is a high-performance active subwoofer designed for professional use, delivering deep, extended low-end and high SPL for any application. Its custom 15-inch low-frequency driver with enlarged 3” voice coil provides efficient power handling and tight, dynamic bass with minimal distortion, while advanced tuning options—including variable lowpass filtering, alignment delay, and cardioid/end-fire array presets—allow precise control of low-frequency performance in any setup.
- Powered by 2,000W of efficient Class D amplification, the AIR XD Sub 15 delivers powerful, clean output with consistent headroom for live sound, installs, and mobile applications. A full-color 2.6” LCD provides intuitive metering, system control, and rapid access to DSP presets, EQ, and tuning modes.
- Built-in Bluetooth with TWS Bridge Mode enables wireless stereo pairing with AIR XD full-range speakers, while flexible routing and direct outputs allow seamless integration into FOH or monitoring setups. Rugged wood enclosures with ergonomic handles, ground-stacking provisions, and built-in caster mounting make the AIR XD Sub 15 as portable as it is powerful, whether flown, stacked, or installed permanently.
Overview
Características
- Custom 15-inch low-frequency driver with enlarged 3” voice coil for deep, dynamic bass and minimal distortion
- 2,000W Class D amplifier delivers powerful, efficient low-end performance
- Frequency Response: 39 Hz to 95 Hz (-3 dB), 32 Hz to 131Hz (-10 dB)
- 128 dB SPL (max)
- Advanced DSP with variable lowpass filter, alignment delay, and cardioid/end-fire array presets
- Integrated “Mo’ Bass” enhancement for added low-frequency punch
- Full-color 2.6” LCD for metering, DSP control, and tuning options
- Built-in Bluetooth with TWS Bridge Mode for wireless stereo pairing with AIR XD full-range models

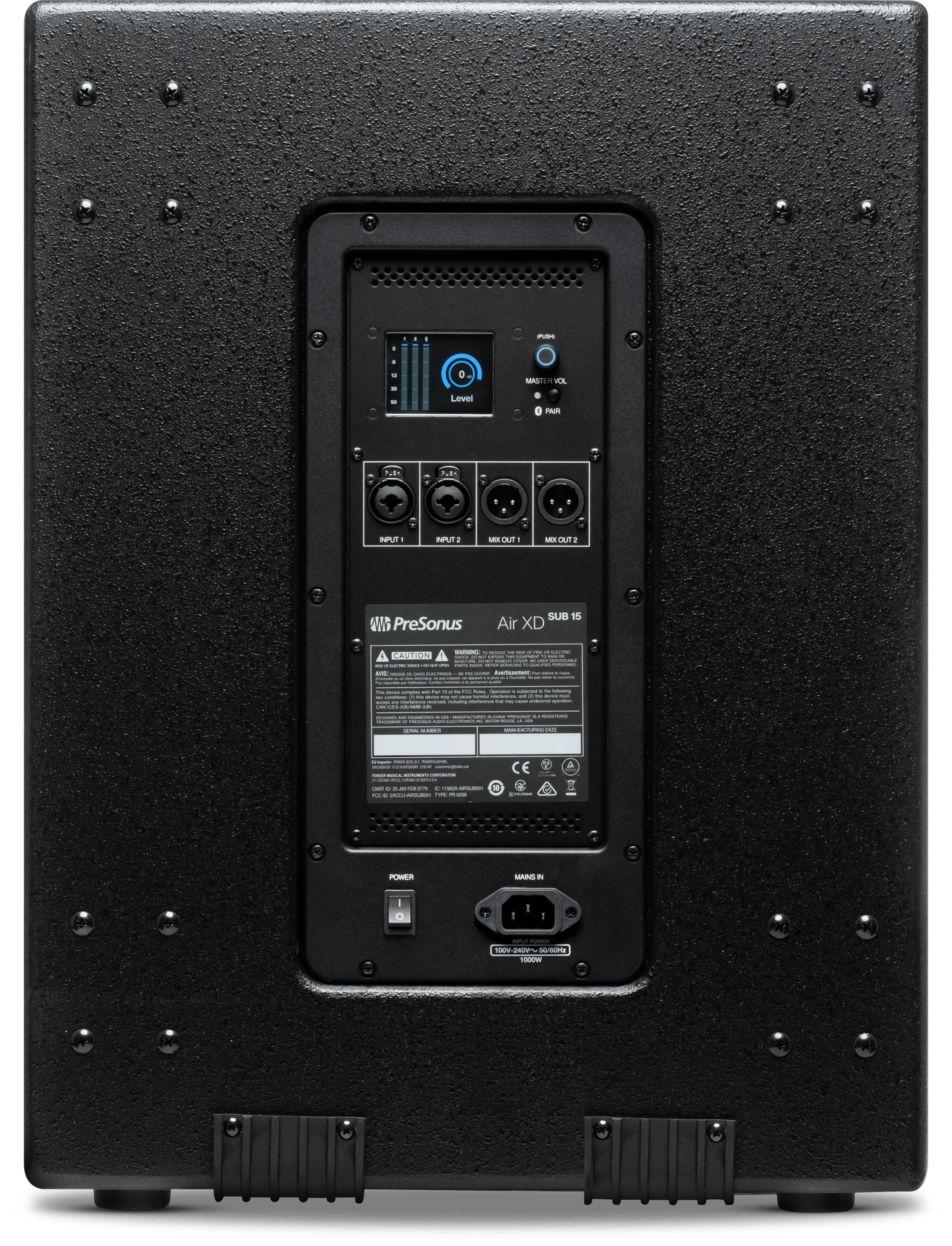

- Dual combo inputs with direct outputs for flexible routing and system integration
- Rugged wood enclosure with ergonomic handles, ground-stacking provisions, and built-in caster mounting for portability
Descargas
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Especificaciones
Accesorios
Included Accessories
Casters
Electrónica
Bluetooth
Bluetooth® V5.0
Channels
Two
Connectivity
Bluetooth
Inputs
Three - 2 x XLR/TRS Line Combo, Bluetooth
Line Out
Two - 2 x XLR Link Out
Power Consumption
5.6A (230V-50 Hz), 11.1A (120V)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class-D
Color
Black
Product Name
AIR XD Sub 15 1 x 15” Active Extended Definition Subwoofer
Series
AIR
Hardware
Audio Controls
Gain, Volume, Hi/Lo EQ, X-over
Cabinet Material
15mm Plywood
Cooling
Passive radiator
Grille Material
1.5 mm Steel
Handle
2 Side
LF Transducers
15” (3” Voice Coil)
Pole Socket
Ground-Stack Provisions
Entradas
Line Input Connection Type
XLR/TRS Mic/Line Combo
Line Inputs Impedance
14K ohm
Line Inputs Maximum Level
+25dBu
Medidas
Product Depth
27.4" (69.6 cm)
Product Height
21" (53.4 cm)
Product Height/Length
21" (53.4 cm)
Product Weight
73.1 lbs (32.9 kg)
Product Width
16.7” (42.4 cm)
Varios
DSP Features
Low-pass EQ, crossover, delay, polarity and “Mo’Bass” mode
Power Cable
IEC
Protections
Output limiter
Output
Line Outputs Connection Type
XLR Male, Balanced
Desempeño
Peak SPL
128 dB
Total Power Output
2000 Watts
Altavoces
Crossover Frequency
60 Hz - 150 Hz
Speaker Type
Active Vented Design
Total Impedance
NA
