Overview
With a barely measurable round-trip latency of less than 1 ms, it's no wonder Sound on Sound magazine dubbed Quantum-series Thunderbolt audio interfaces the "fastest audio interface on the planet." The Quantum 2626 uses the Thunderbolt 3 bus and PreSonus®' proprietary driver to achieve the lowest round-trip latency of any audio interface (as low as <1 ms). Now you can record and monitor with up to 24-bit, 192 kHz fidelity through your favorite plug-ins, without leaving the DAW.
The Quantum 2626 provides up to 26 audio inputs and 26 outputs, with 8 of PreSonus' lauded XMAX Class A analog microphone preamps. High-quality converters on every analog input and output provide 115 dB of dynamic range, with superior low-jitter clocking, to capture complex musical harmonics smoothly and naturally with no audible distortion. The result is the superb audio quality sought by working professionals. You also get MIDI I/O and BNC word clock I/O that ensures tight sync with other digital audio devices. The interface is well protected by a 1U rack-mountable, rugged, all-metal chassis with metal knobs.
With the included Fender Studio Pro perpetual license, the Quantum 2626 is a complete recording solution. The interface also is compatible with virtually any recording software for macOS or Windows. Free Fender Universal Control software provides access to full metering and an integrated real-time analyzer (RTA).
Overview
Features
- 26x26 Thunderbolt 3 ultra-low-latency (as low as <1 ms roundtrip)
- 24-bit/192 kHz operation with high-quality 115 dB A/D/A converters
- Simultaneous I/O up to 26 inputs / 26 outputs (at 44.1 or 48 kHz)
- 2 mic/instrument inputs with preamp direct outputs with returns and 6 balanced mic/line inputs, all with PreSonus's famed XMAX preamps
- 2 balanced stereo main outputs with independent level control; 8 DC-coupled, balanced line outputs; and dual headphone outputs with independent level control
- ADAT Optical/Dual SMUX inputs/outputs: 16x16 channels at 44.1 or 48 kHz; 8x8 channels at 88.2 or 96 kHz
- Stereo S/PDIF coaxial input and output
- MIDI I/O and BNC word clock I/O with low-jitter clocking
- Professional Recording Software Included - Fender Studio Pro License
- 1U rack-mountable, with all-metal chassis and metal knobs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Software
- Universal Control v5.0 Download (Windows)
- Universal Control v5.0 Download (Mac)
- Universal Control v5.0 (Android)
- Universal Control v4.7.2.108537 Download (Mac)
- Universal Control v4.7.2.108537 Download (Windows)
- Universal Control v4.7.2.108537 (Android)
- Universal Control v4.7.1.107907 Download (Mac)
- Need an older version? Click here
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Fender Studio Pro DAW Software Included.
Your hardware registration includes a perpetual License to Fender Studio Pro.
About XMAX preamps.
PreSonus®’ famed XMAX Class A preamps have no crossover distortion and deliver pure, clear, musical results. They run on high-voltage power rails to deliver more headroom, deeper lows, smoother highs and a richer overall sound. We only use discrete components for accuracy and transparency — not op-amps that can add noise, coloration and harshness.
All the connectivity you need.

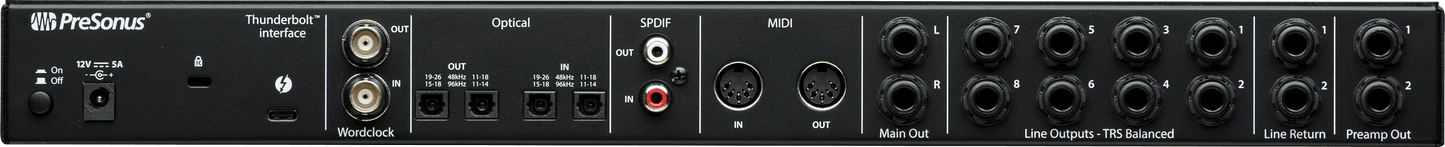

The Quantum 2626 provides two combo mic/instrument inputs (with direct outs and returns for patching outboard gear) and six balanced mic/line inputs. Another 18 inputs and outputs are available via ADAT/dual SMUX and S/PDIF. Eight ¼-inch TRS outputs are DC-coupled for sending control voltages, plus two Main outs, two headphone outs, and MIDI I/O.
Specs
General
Product Name
Quantum 2626, Black, 120V
Series
Quantum
Color
Black
Microphone Inputs
Connection Type
XLR Female (Combo), Balanced
Frequency Response
20 Hz to 20 kHz (±0.15 dB, Unity Gain, 48 kHz)
Input Impedance
1.6 kΩ
Dynamic Range
> 110 dB (A-Weighted, Minimum Gain)
EIN
< -131 dBu (Maximum Gain, 40Ω, 22 kHz BW, A-Weighted)
THD+N
< 0.005% (1 kHz, Minimum Gain)
Gain Range
60 dB
Maximum Input Level
+10 dBu (Balanced, Minimum Gain)
Phantom Power
+48 VDC
Line Inputs
Frequency Response
20 Hz to 20 kHz (±0.05 dB, Unity Gain, 48 kHz)
Input Impedance
10 kΩ
Dynamic Range
> 118 dB (A-Weighted, Minimum Gain)
THD+N
< 0.005% (1 kHz, Minimum Gain)
Maximum Input Level
+ 18 dBu (Balanced, Minimum Gain)
Instrument Inputs
Frequency Response
20 Hz to 20 kHz (±0.2 dB, Unity Gain, 48 kHz)
Dynamic Range
> 106 dB (A-Weighted, Minimum Gain)
THD+N
< 0.005% (1kHz, Minimum Gain)
Gain Range
60 dB
Maximum Input Level
+15 dBu (Unbalanced, Minimum Gain)
Line Outputs
Connection Type
1/4" TRS Female
Main Outputs
Connection Type
1/4" TRS Female
Headphone Outputs
Connection Type
1/4” TRS Female, Stereo, Unbalanced
Frequency Response
20 Hz to 20 kHz, +/-0.5 dB
Impedance Working Range
16Ω to 300Ω
Dynamic Range
> 110 dB (A-Weighted)
THD+N
< 0.03% (1 kHz)
Maximum Output Level
175 mW/Channel (56Ω Load)
MIDI I/O
Connection Type
Dual 5-Pin Female DIN
Power
Voltage
120V
Voltage Requirements
100-240 VAC, 50-60 Hz
Digital Audio
Connectivity
Thunderbolt
Bit Depth
24 Bits
Dynamic Range
115 dB (A-Weighted)
Supported Sample Rates
44.1, 48, 88.2, 96, 176.4, 192 (kHz)
Measurements
Height
1.75" (44.45 mm)
Depth
7" (17.8 cm)
Width
19" (483mm)
Weight
6 lbs. (2.72 kg)
